Hose - Drain - Cowl Screen - Remove And Replace: Install

  1. Position the cowl screen drain hose into the vehicle, and then install the clips (x2) that attach the drain hose to the vehicle.
    NOTE: Position cowl screen outlet into the drain hose.

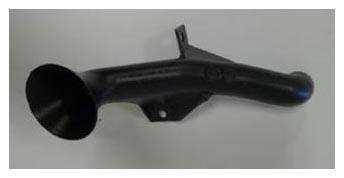

    G15394187Courtesy of TESLA, INC.

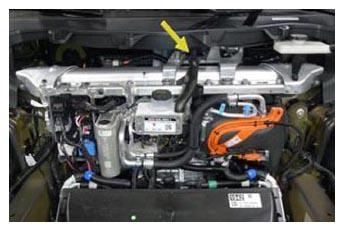

    G15394188Courtesy of TESLA, INC.

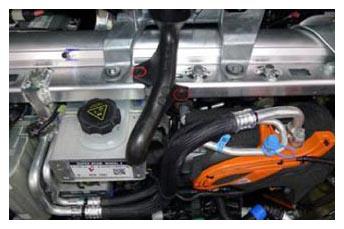

    G15394189Courtesy of TESLA, INC.
  2. Install the underhood storage unit. See Underhood Storage Unit (Remove and Install) .
  3. Install the front underhood apron. See UNDERHOOD APRON - FRONT (REMOVE AND REPLACE) .
  4. Install the LH and RH underhood aprons. See UNDERHOOD APRON - LH (REMOVE AND REPLACE) .
  5. Install the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  6. Raise the LH front window and close the LH front door.
