Cover - Shock Tower - LH - Remove And Replace: Remove

  1. Open the LH front door and lower the LH front window.
  2. Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  3. Remove the LH and RH underhood aprons. See UNDERHOOD APRON - LH (REMOVE AND REPLACE) .
  4. Remove the front underhood apron. See UNDERHOOD APRON - FRONT (REMOVE AND REPLACE) .
  5. Remove the underhood storage unit. See Underhood Storage Unit (Remove and Install) .

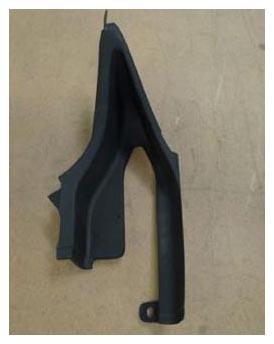

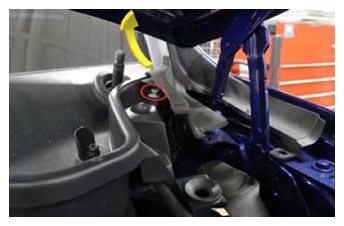

  6. Remove the clip that attaches the LH outer hood hinge cover, and then remove the cover from the vehicle. Repeat this step for the RH outer hood hinge cover.
    G15394173Courtesy of TESLA, INC.
    G15394174Courtesy of TESLA, INC.

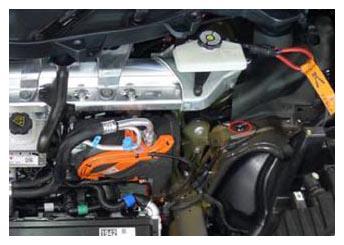

  7. Release the clip that attaches the LH speed sensor harness to the vehicle.
    G15394175Courtesy of TESLA, INC.

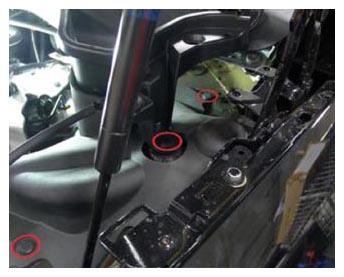

  8. Remove the clips (x3) that attach the LH shock tower cover to the vehicle, and then release the cover and LH cowl screen anchor.
    G15394176Courtesy of TESLA, INC.

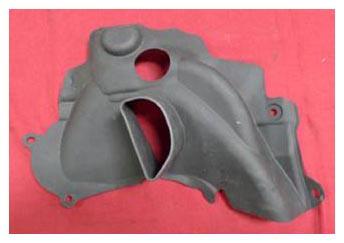

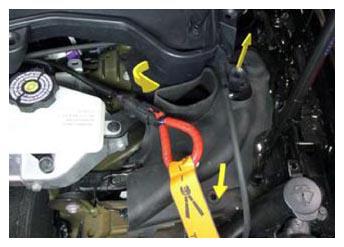

  9. Lift the LH side of the cowl screen, and then fold the LH shock tower cover around the cowl screen to remove it from the vehicle
    G15394177Courtesy of TESLA, INC.
    G15394178Courtesy of TESLA, INC.
