Garnish - Liftgate Trough - Rear Fascia - Remove And Replace: Install

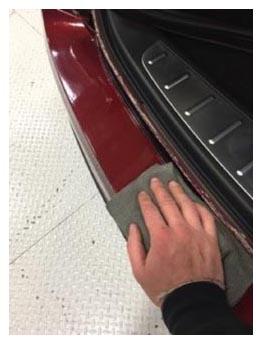

  1. Wipe off any loose debris, and then use IPA wipes to remove any adhesive residue from the rear fascia.
    NOTE: Allow 1 minute of dry time.
    G15394224Courtesy of TESLA, INC.

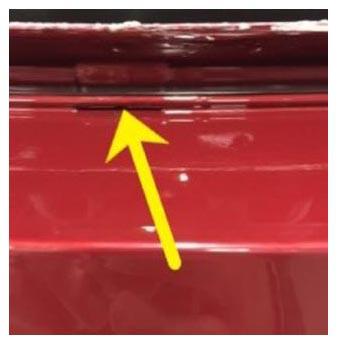

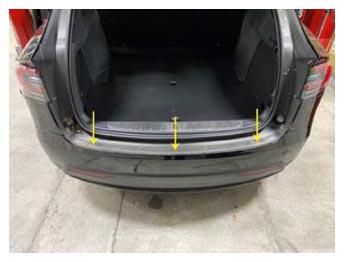

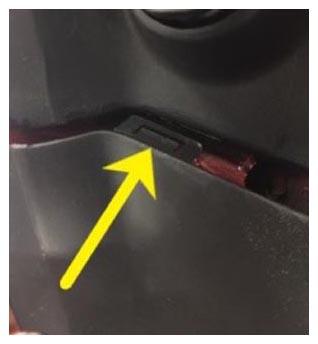

  2. Position the rear fascia liftgate trough garnish onto the rear fascia, and then push the garnish forward to engage the tabs (x9).
    NOTE: Fully secure the tabs onto the fascia and side trough trims.
    G15394225Courtesy of TESLA, INC.
    G15394226Courtesy of TESLA, INC.
    G15394227Courtesy of TESLA, INC.

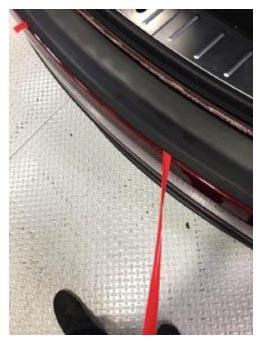

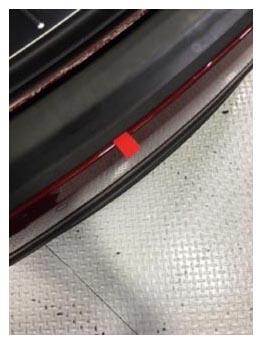

  3. Remove the adhesive backing, and then fully seat the rear fascia liftgate trough garnish onto the rear fascia.
    G15394228Courtesy of TESLA, INC.
    G15394229Courtesy of TESLA, INC.

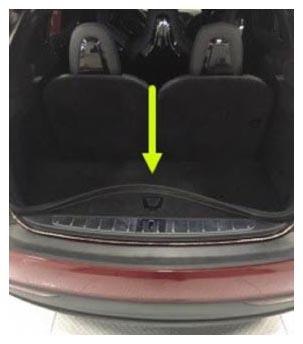

  4. Install the lower portion of the liftgate seal.
    G15394230Courtesy of TESLA, INC.
