Garnish - Fender - Rear - LH - Remove And Replace: Remove

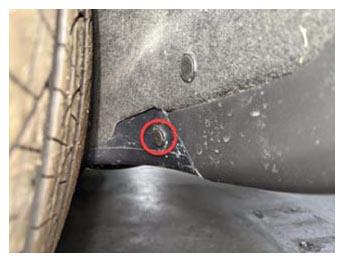

- Remove the clip that attaches the LH rear fender garnish to the mid aero shield.
 Courtesy of TESLA, INC.
|

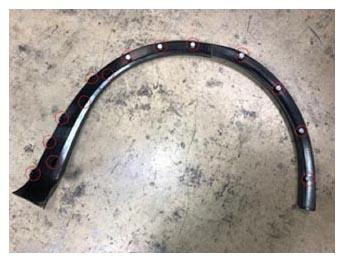

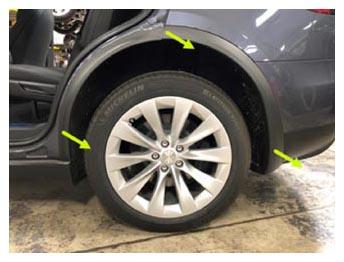

- Release the clips (x7) and tabs (x7) that attach the LH rear fender garnish to the vehicle, and then remove the garnish from the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
