Garnish - Fender - Rear - LH - Remove And Replace: Install

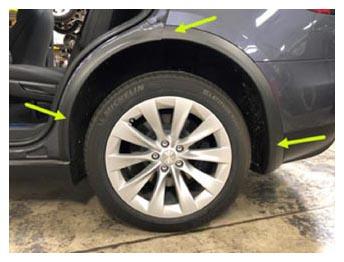

  1. Position the LH rear fender garnish onto the vehicle, and then secure the clips (x7) and tabs (x7) that attach the garnish to the vehicle.
    NOTE: Verify the garnish is seated flush along the rear fascia.
    G15394001Courtesy of TESLA, INC.

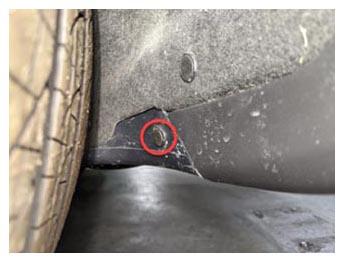

  2. Install the clip that attaches the LH rear fender garnish to the mid aero shield.
    G15394002Courtesy of TESLA, INC.
