Garnish - Fender - Front - LH - Remove And Replace: Install

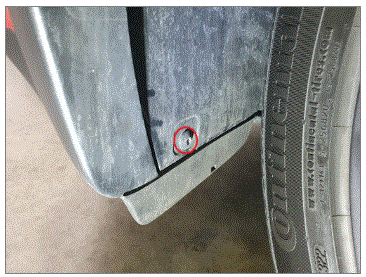

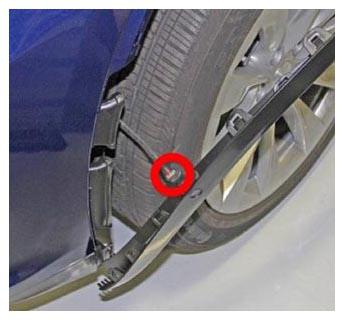

Position the LH front wheel fairing on the fender garnish, and then install the screw that attaches the fairing to the garnish.
1.5 N.m (1.1 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T25 bit
- Ratchet/torque wrench
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

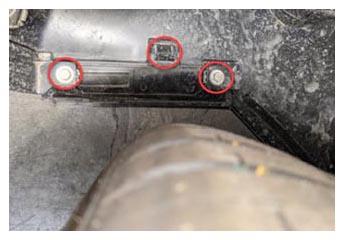

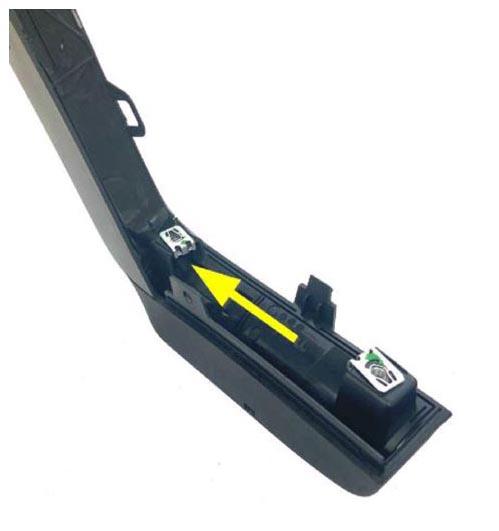

Position the LH front fender garnish onto the vehicle, connect the electrical connector and engage the connector lock, and then secure the clips (x5) and tabs (x9) that attach the garnish to the vehicle.
NOTE: Align the ducting into garnish; the leading clips will not fully engage if the ducting is not correctly aligned.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

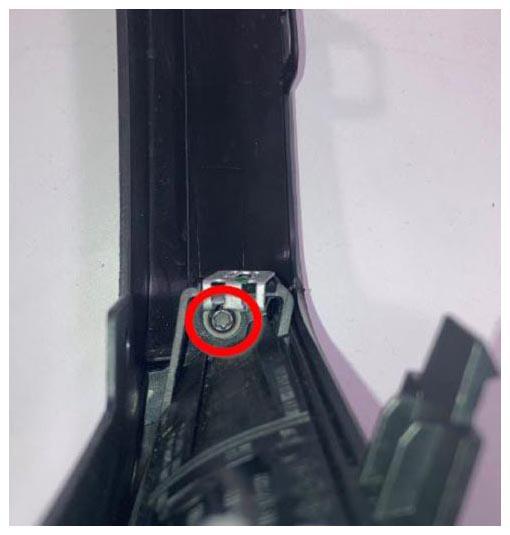

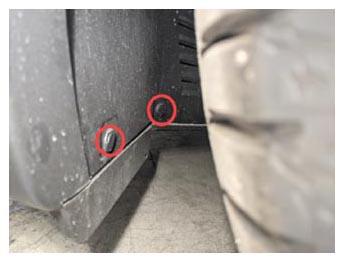

Install the bolts (x2) and secure the tab that attach the LH front fender garnish to the vehicle.
1.5 N.m (1.1 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
Courtesy of TESLA, INC.

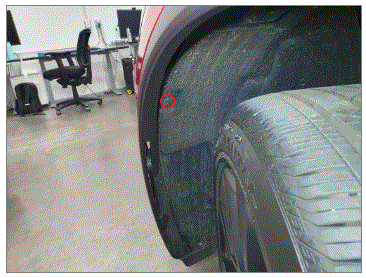

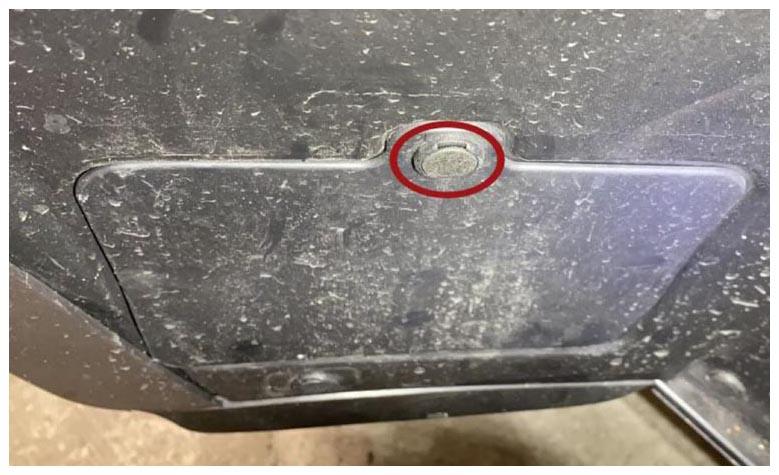

Position the LH front liner cover on the wheel arch liner, and then install the clip that attaches the liner cover to the wheel arch liner.

Courtesy of TESLA, INC.

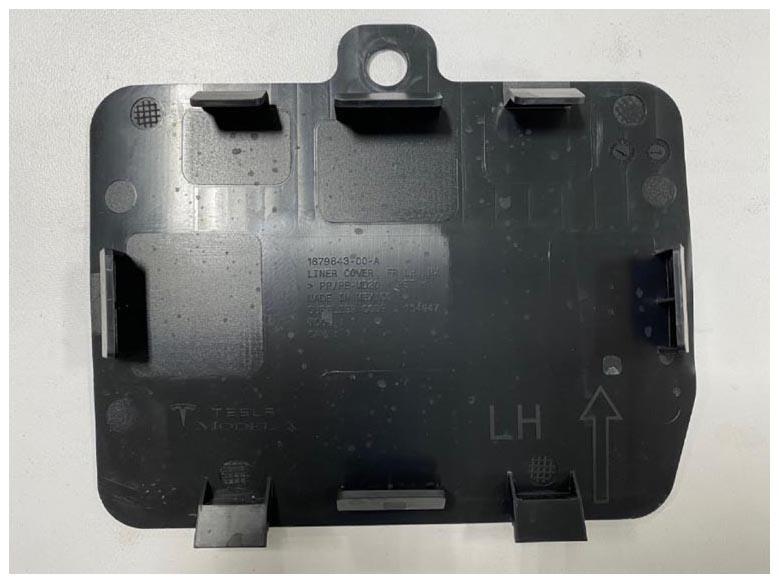

Figure 2. Inside view of the liner cover. Note the tabs (x8)

Courtesy of TESLA, INC.

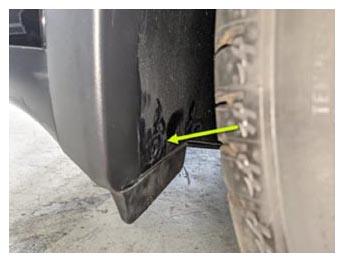

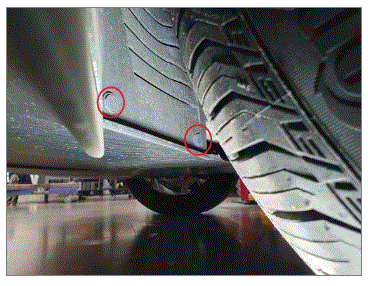

HW3 vehicles only: Maneuver the front portion of the LH front wheel arch liner into position, and then install the clips (x2).

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
HW4 vehicles only: Maneuver the front portion of the LH front wheel arch liner into position, and then install the clips (x3) and bolt.
Tip: Use of the following tool(s) is recommended:
- T30 socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Use the center display to remove the air suspension from "Jack Mode".
Use the center display to set the air suspension ride height to "Standard".
Raise the front windows and close the LH front door.
