Fairing - Wheel - Front - LH - Remove And Replace: Install

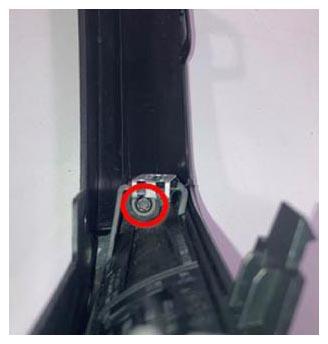

Position the LH front wheel fairing into the LH front fender garnish, and then install the screw that attaches the fairing to the garnish.
1.5 N.m (1.1 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- T25 socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

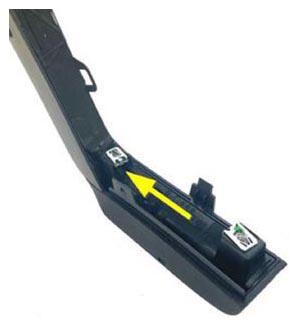

Connect the electrical harness to the LH front fender garnish parking sensor connector, and then starting from the front and working rearward, fasten the clips (x5) and tabs (x9) that attach the fender garnish to the body.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

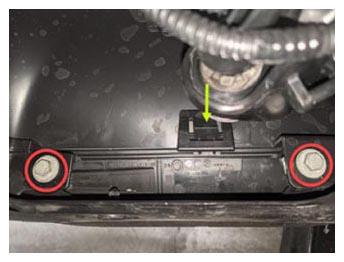

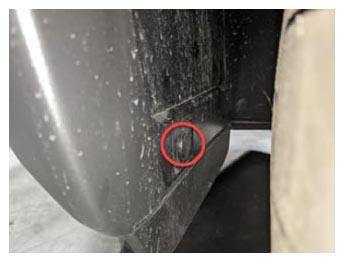

Install the LH front wheel fairing to the valance, and then fasten the tab and install the bolts (x2) that attach the wheel fairing to the valance.
1.5 N.m (1.1 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
Courtesy of TESLA, INC.

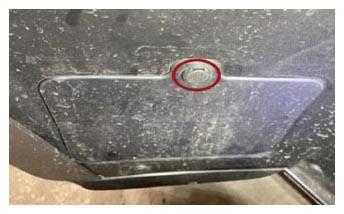

Install the LH front wheel arch liner cover to the LH front wheel arch liner, and then fasten the clip and the tabs (x8) that attach the cover to the liner.

Courtesy of TESLA, INC.

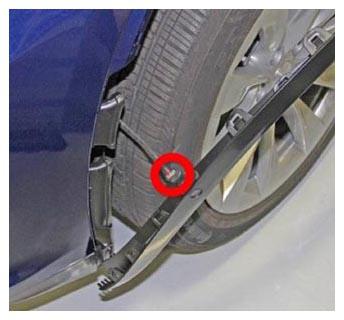

Fasten the clip that attaches the LH front wheel fairing to the LH front wheel arch liner.

Courtesy of TESLA, INC.
Press the brake pedal to turn on drive rails.
Use the center display to remove the air suspension from "Jack Mode".
Raise the LH front window and close the LH front door.
