Fairing - Rocker Panel - Rear - LH - Remove And Replace: Install

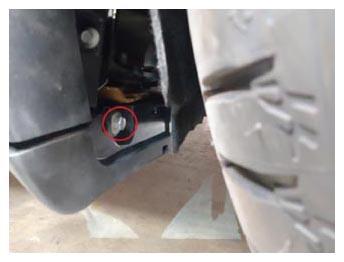

Position the LH rear rocker panel fairing onto the vehicle, and then install the 10 mm bolt that attaches the fairing to the vehicle.
2 N.m (1.5 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
Courtesy of TESLA, INC.

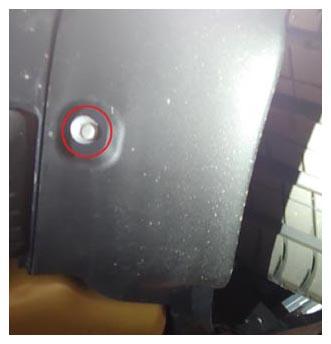

Install the 8 mm bolt that attaches the LH rear rocker panel fairing onto the vehicle.
4 N.m (2.9 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 8 mm socket
Courtesy of TESLA, INC.

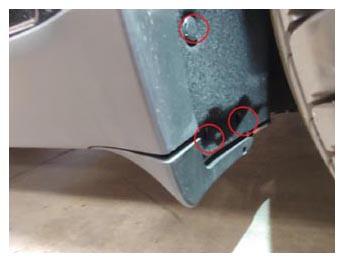

Install the clips (x3) that attach the LH rear rocker panel fairing onto the vehicle.

Courtesy of TESLA, INC.
