Applique - (Roof - Rear) - Remove And Replace: Install

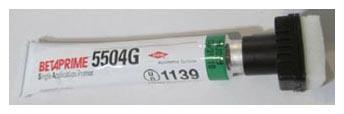

Apply primer onto the rear roof applique. Allow primer to dry before applying urethane.

Courtesy of TESLA, INC.

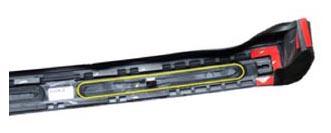

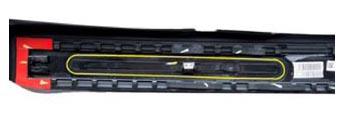

Apply urethane onto the rear roof applique.
Tip: Use of the following tool(s) is recommended:

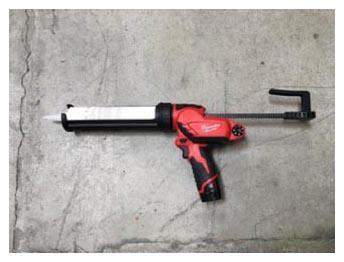

- Caulk and adhesive gun
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

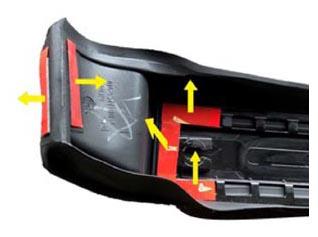

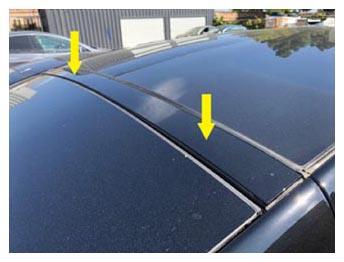

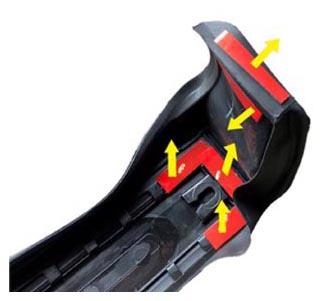

Peel off the adhesive backing from the rear roof applique, position the applique on the vehicle, and then install the clips (x3) that attach the applique to the liftgate.
NOTE: Apply firm and even pressure along the entirety of the applique during installation.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Close the liftgate.
Close the LH and RH falcon wing doors.

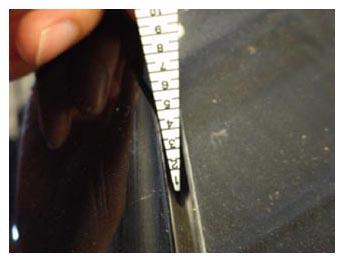

Check the rear roof applique gap and flush measurements.
NOTE: Use current CVIS specifications.

Tip: Use of the following tool(s) is recommended:

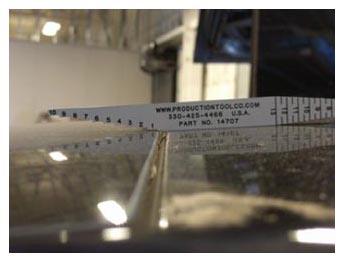

- Gap and flush tool
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Raise the LH front window.
Close the LH front door.
