Tesla Badge - Rear - Remove And Replace: Install

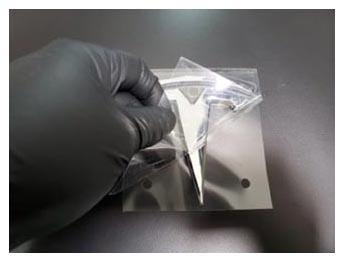

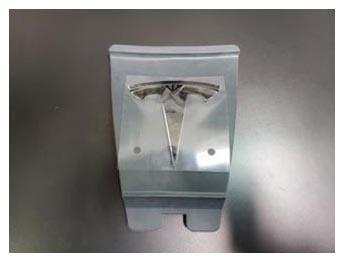

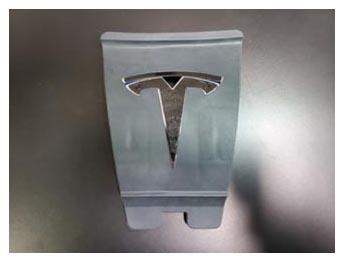

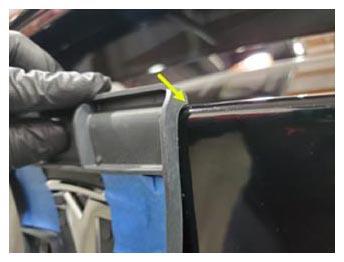

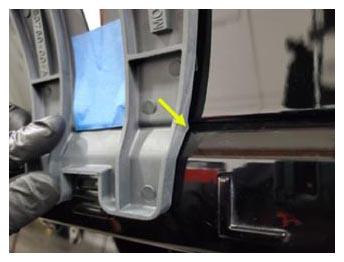

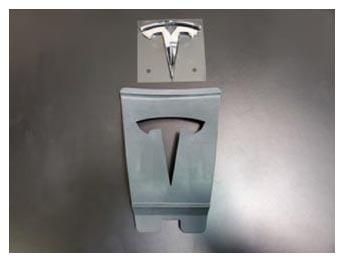

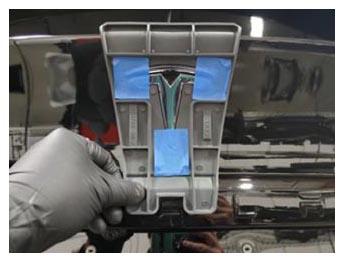

Remove the new rear Tesla badge front film, install the badge with the rear film on the badge alignment tool, and then perform a dry fit check as required.

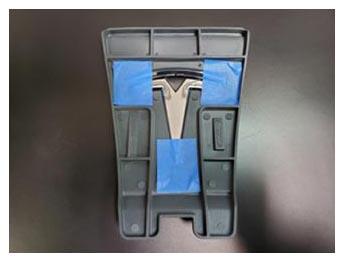

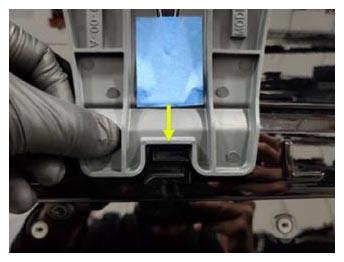

NOTE: The badge alignment tool will line up with the rear applique. Use masking tape to secure the front of the badge to the badge alignment tool.

Tip: Use of the following tool(s) is recommended:
- Masking tape
- MX rear T badge fixture - 1083769-00-A
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

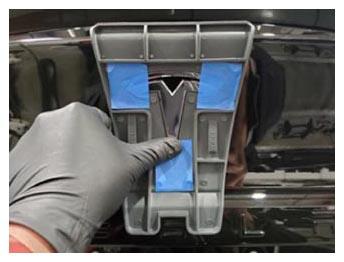

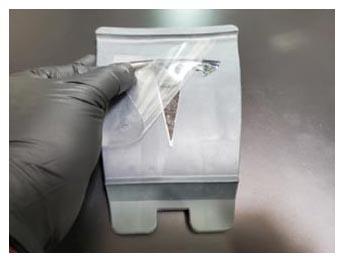

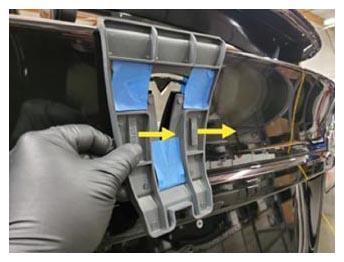

Peel off the adhesive backing film from the rear Tesla badge, and then install the badge on the trunk.
NOTE: Do not remove the masking tape from the front of the badge.

NOTE: Starting from the bottom and working upwards, apply pressure and allow the badge to fully adhere to the trunk.

Tip: Use of the following tool(s) is recommended:
- Masking tape
- MX rear T badge fixture - 1083769-00-A
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Remove the masking tape and the alignment tool from the rear Tesla badge.
Tip: Use of the following tool(s) is recommended:
- Masking tape
- MX rear T badge fixture - 1083769-00-A
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

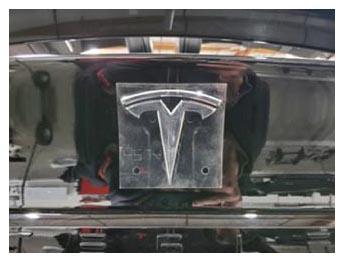

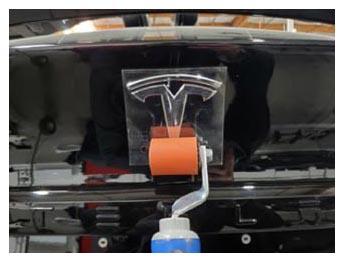

Install the rear Tesla badge front film.

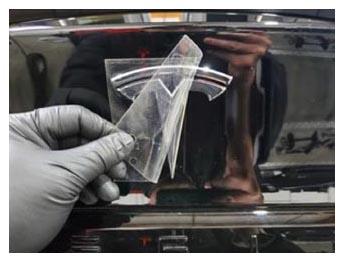

NOTE: Starting from the center and working outwards, use a seam roller to apply pressure and allow the badge to fully adhere to the trunk, and then remove the film.

Tip: Use of the following tool(s) is recommended:
- Seam roller - 1049517-00-A
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

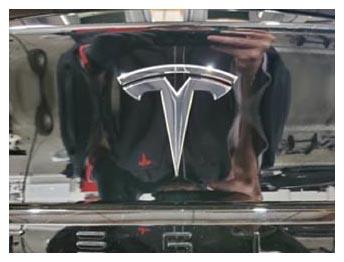

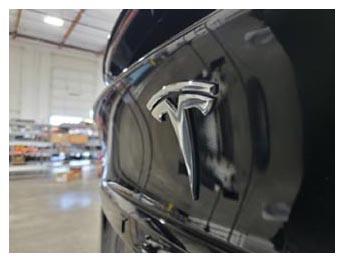

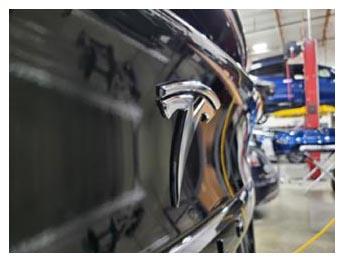

Visually inspect the rear Tesla badge and verify proper installation. Wipe away any contamination.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
