Plaid Letter Badge - Remove And Replace: Remove

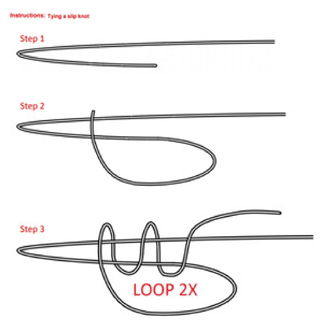

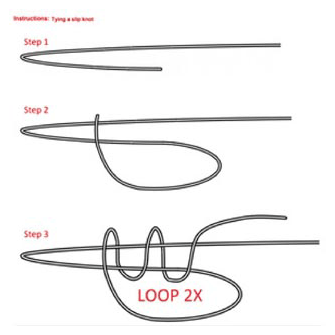

- Cut the badge removal kit wire, and then tie slip knots onto both handles as required.
Tip: Use of the following tool(s) is recommended:

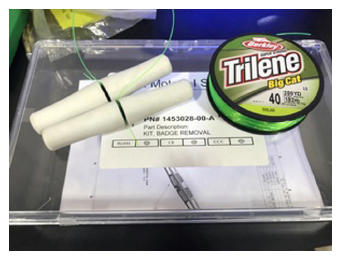

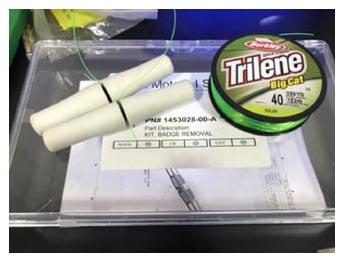

- Badge removal kit - 1453028-00-A
- Scissors
- Tape measure metric/inch

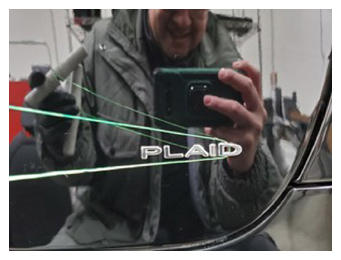

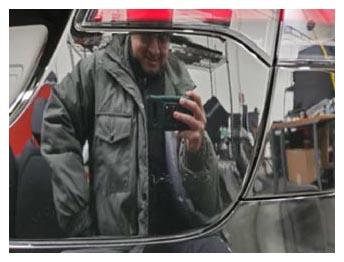

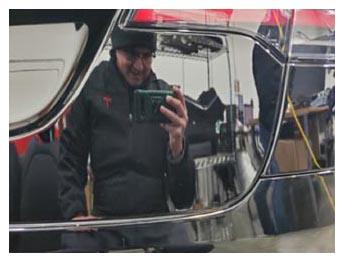

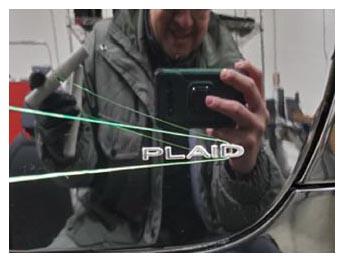

- Feed the wire back and forth to separate the plaid letter badge from the liftgate surface, and then remove the badge from the vehicle.
Tip: Use of the following tool(s) is recommended:
- Badge removal kit - 1453028-00-A

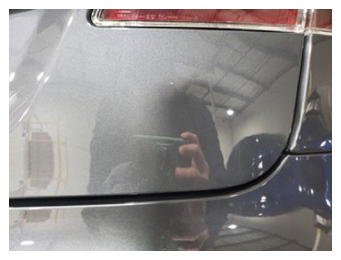

- Use IPA wipes to remove old adhesive residue from the liftgate surface area. Allow 1 minute dry time.
Tip: Use of the following tool(s) is recommended:
- IPA wipes
