Plaid Letter Badge - Remove And Replace: Install
- Open the liftgate.

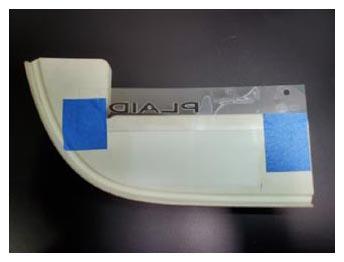

- If necessary, install the new plaid letter badge with film on the badge alignment tool, and then perform a dry fit check.NOTE: The badge alignment tool will line up along the RH bottom corner of the liftgate.
Tip: Use of the following tool(s) is recommended:
- Masking tape
- MX battery badge fixture - 1075475-00-A
- Peel off the adhesive backing film from the new plaid letter badge, and then install the badge on the badge alignment tool.
Tip: Use of the following tool(s) is recommended:
- Masking tape
- MX battery badge fixture - 1075475-00-A
- Install the new plaid letter badge on the liftgate.NOTE: Apply pressure and allow each letter to fully adhere to the liftgate.
Tip: Use of the following tool(s) is recommended:
- Masking tape
- MX battery badge fixture - 1075475-00-A
- Remove the alignment tool from the plaid letter badge.NOTE: The front film will lift with the alignment tool.
Tip: Use of the following tool(s) is recommended:
- Masking tape
- MX battery badge fixture - 1075475-00-A
- Close the liftgate.
- Use a seam roller to apply pressure and allow each letter to fully adhere to the liftgate, and then remove the film from the badge.
Tip: Use of the following tool(s) is recommended:
- Masking tape
- Seam roller - 1049517-00-A
- Visually inspect the plaid letter badge and verify proper installation. Wipe away any contamination.
