Seal - Lower NVH Extrusion - LH - Remove And Replace: Install

Apply adhesive promoter to the LH lower NVH extrusion seal and the LH rear lower door assembly surface area. Allow 1 minute dry time.

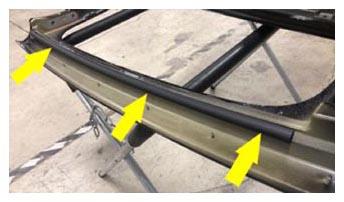

Remove the double sided tape from the LH lower NVH extrusion seal, install the seal on the LH rear lower door assembly, and then use a seam roller to press the seal in place.

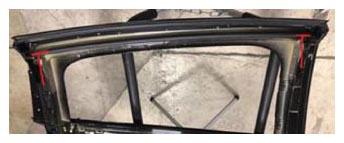

NOTE: Center the seal approximately 57 mm from the rear of cantrail seal, and 51 mm from the front of the cantrail seal.

Tip: Use of the following tool(s) is recommended:
- Seam roller - 1049517-00-A
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the LH rear lower door assembly. See Door Assembly - Rear Lower - LH (Remove and Replace) .

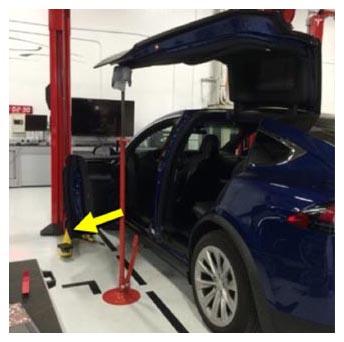

With assistance, remove the underhoist stand from the LH falcon wing door.
Tip: Use of the following tool(s) is recommended:
- 3/4 Ton underhoist stand - 1081765-00-A
Courtesy of TESLA, INC.
Install the LH lower rear door harness. See Harness - Rear Door - Lower - LH (Remove and Replace) .

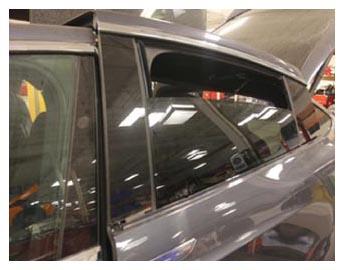

Manually lower the LH falcon wing door.
NOTE: Do not engage the door latch.

Courtesy of TESLA, INC.
Connect LV power. See LV Power (Disconnect and Connect) .
Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
Close the hood.
Install the LH rear door trim panel. See Panel - Door Trim - Rear - LH (Remove and Replace) .
Install the LH rear door trim decor. See Decor - Trim - Rear Door - LH (Remove and Replace) .
Install the LH rear door trim lower garnish. See Garnish - Lower - Door Trim - Rear - LH (Remove and Replace) .
Calibrate the rear doors.
NOTE: If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate to calibrate the rear doors.
Move the LH front seat to original position.
Raise both of the LH side windows.
Close the LH front door.
