Seal - Liftgate - Margin - Remove And Replace: Install

  1. Remove the adhesive backing from the margin liftgate seal, and then work around the liftgate hinges to position the seal onto the rear roof applique assembly.
    NOTE: Make sure the seal is fully secured onto the rear roof applique and is positioned under the center liftgate trough trim.

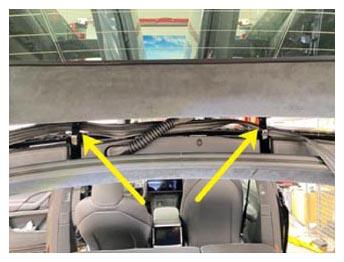

    G15392664Courtesy of TESLA, INC.

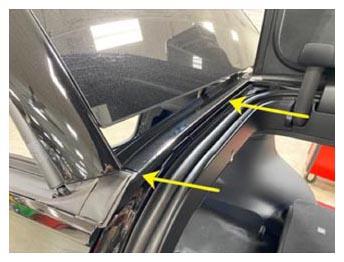

    G15392665Courtesy of TESLA, INC.

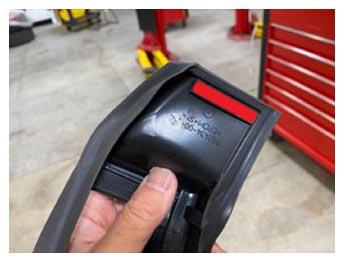

    G15392666Courtesy of TESLA, INC.

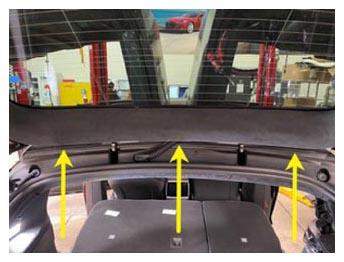

    G15392667Courtesy of TESLA, INC.

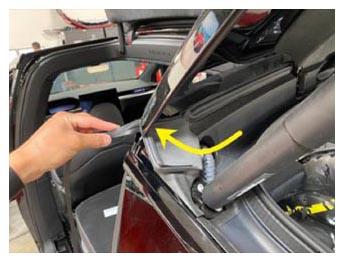

    G15392668Courtesy of TESLA, INC.

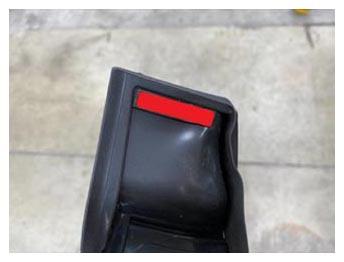

    G15392669Courtesy of TESLA, INC.

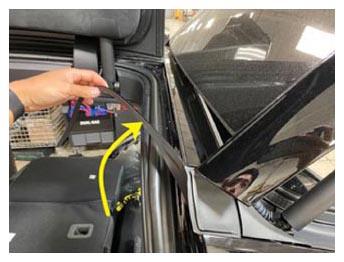

    G15392670Courtesy of TESLA, INC.

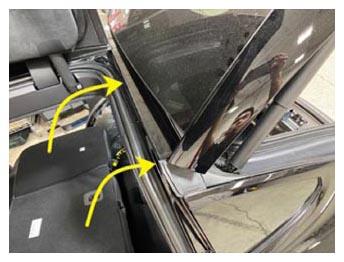

    G15392671Courtesy of TESLA, INC.
  2. Close the liftgate and rear doors.
  3. Raise the LH front window and close the LH front door.
