Seal - Hood - Remove And Replace: Install

  1. Position the hood seal onto the underhood molding, align the joint seal seam onto the center of the molding, and then press the seal into the molding to install it into the trim.
    NOTE: Make sure the hood seal is fully seated onto the trim.

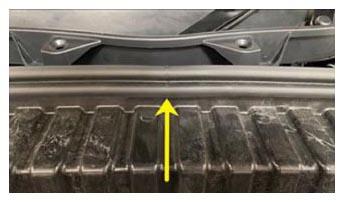

    G15392636Courtesy of TESLA, INC.

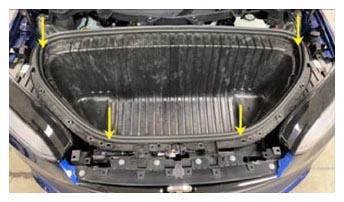

    G15392637Courtesy of TESLA, INC.
  2. Install the front underhood apron. See Underhood Apron - Front (Remove and Replace) .
  3. Install the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace) .
  4. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
