Closeout Panel - Door - Front - LH - Remove And Replace: Install

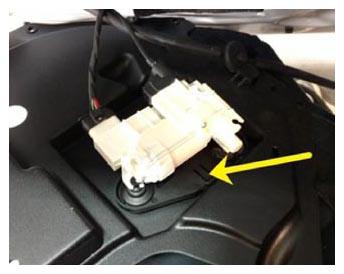

Slide the cinch motor onto the LH front door closeout panel, and then secure the tab to lock it into position.
NOTE: Make sure there is an audible click when the cinch motor is locked into position.

Courtesy of TESLA, INC.

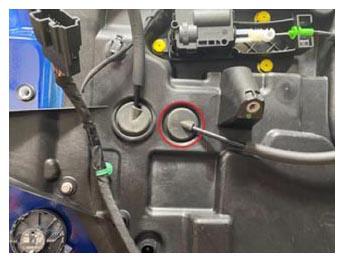

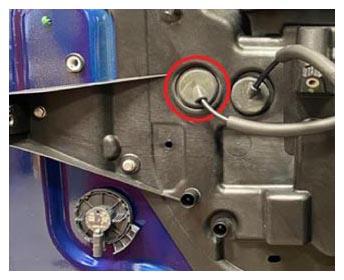

Feed the interior door handle release cable through the closeout panel, and then install the grommet.

Courtesy of TESLA, INC.
Feed the release motor cable through the closeout panel, and then install the grommet.

Courtesy of TESLA, INC.

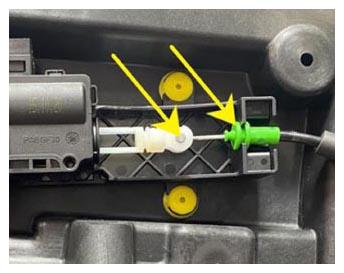

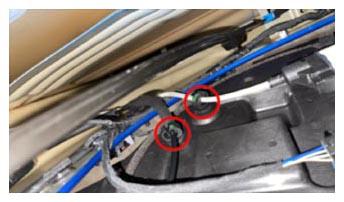

Install the latch cable clips (x2) on the backside of the LH front door closeout panel.
NOTE: Make sure tabs on the rear and bottom edges are seated.

Courtesy of TESLA, INC.
Position the LH front door closeout panel onto the LH front door.
NOTE: Make sure tabs on the rear and bottom edges are seated.

Courtesy of TESLA, INC.

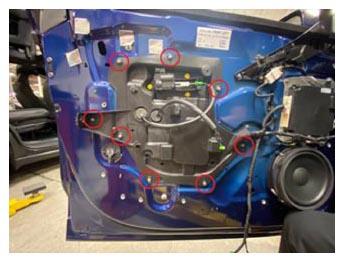

Remove the bolts (x8) that attach the LH front door closeout panel to the door assembly.
1.8 N.m (1.3 ft-lbs)

Use of the following tool(s) is recommended:
- 8 mm socket
Courtesy of TESLA, INC.

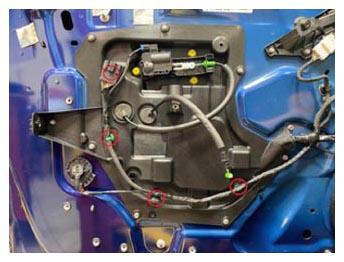

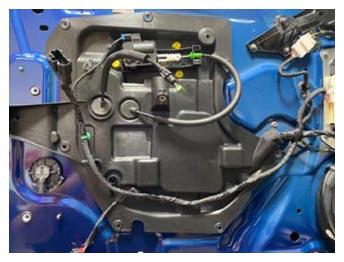

Install the clips (x4) that attach the LH front door harness to the LH front door closeout panel.

Courtesy of TESLA, INC.

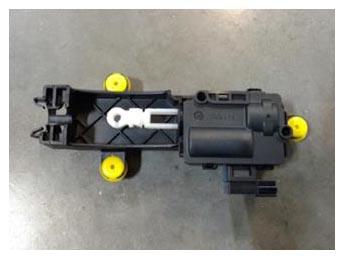

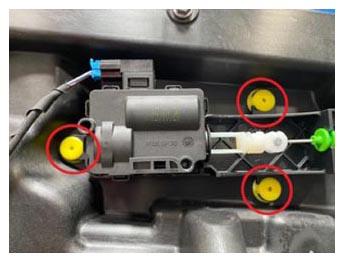

Position the LH front door release motor into the LH front door closeout panel, install the release cable to the release motor, and then install the clips (x3) that attach the release motor to the closeout panel.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

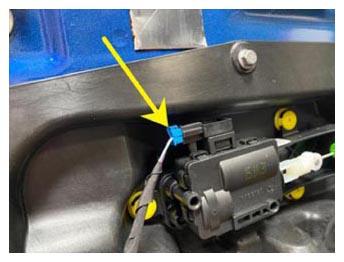

Connect the release motor electrical connector.

Courtesy of TESLA, INC.
Install the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Replace) .
Install the LH front door trim decor. See Decor - Trim - Front Door - LH (Remove and Replace) .
