Latch - Liftgate - Remove And Replace: Remove

  1. Remove the liftgate cinching actuator from the vehicle. See ACTUATOR - CINCHING - LIFTGATE (REMOVE AND REPLACE) .

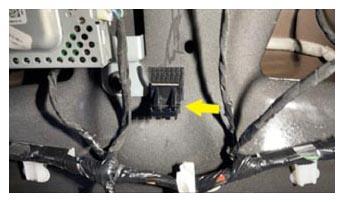

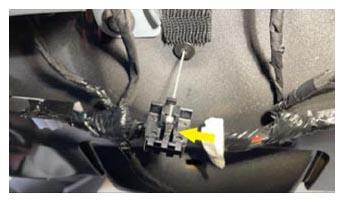

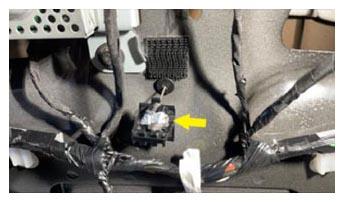

  2. Remove a small amount of the butyl patch, release the locking tab and Velcro strap, and then release the liftgate emergency release handle from the liftgate.
    G15391673Courtesy of TESLA, INC.
    G15391674Courtesy of TESLA, INC.
    G15391675Courtesy of TESLA, INC.

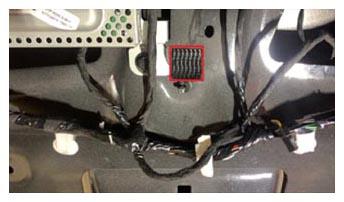

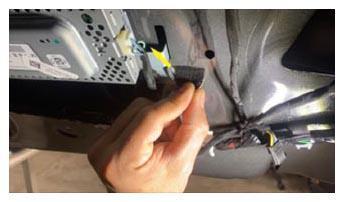

  3. Gently remove the liftgate emergency release handle Velcro patch from the liftgate.
    NOTE: The Velcro patch will be reused further in the procedure.
    G15391676Courtesy of TESLA, INC.
    G15391677Courtesy of TESLA, INC.

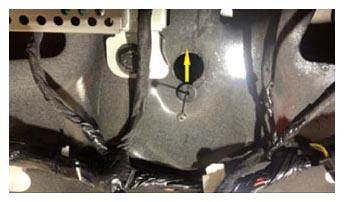

  4. Use a plastic trim tool to lift the emergency release cable, and then carefully remove the cable from the liftgate.
    CAUTION: Use caution when releasing the cable.
    NOTE: The cable is snug to the liftgate.
    G15391678Courtesy of TESLA, INC.
  5. Disconnect the liftgate latch electrical connector.

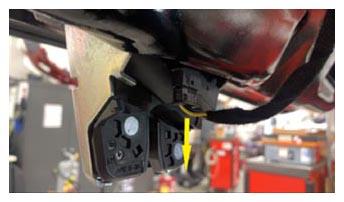

    G15391679Courtesy of TESLA, INC.

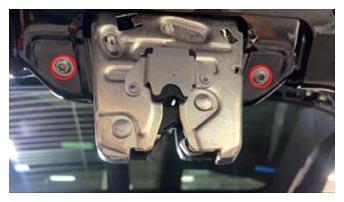

  6. Remove the bolts (x2) that attach the liftgate latch to the liftgate.

    10 N.m (7.4 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • T30 socket
    G15391680Courtesy of TESLA, INC.

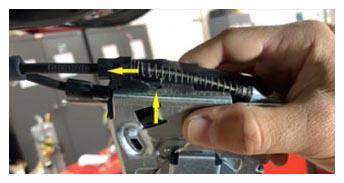

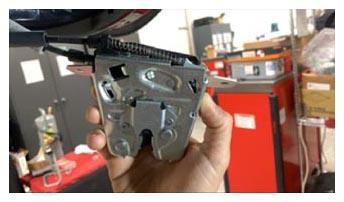

  7. Remove the liftgate latch from the liftgate, and then release the liftgate cinch cable from latch arm.
    NOTE: Handle carefully so as to not cause damage to the emergency release cable.
    G15391681Courtesy of TESLA, INC.
    G15391682Courtesy of TESLA, INC.

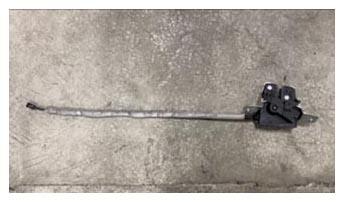

    G15391683Courtesy of TESLA, INC.
