Latch - Liftgate - Remove And Replace: Install

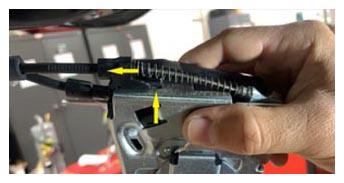

Install the liftgate cinch cable onto the liftgate latch.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

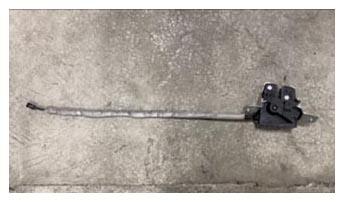

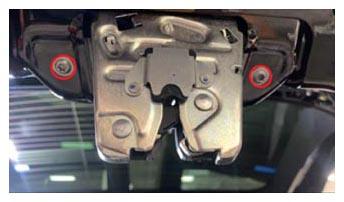

Position the liftgate latch onto the liftgate, and then install the bolts (x2) that attach the liftgate latch to the liftgate.
10 N.m (7.4 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- T30 socket
Courtesy of TESLA, INC.

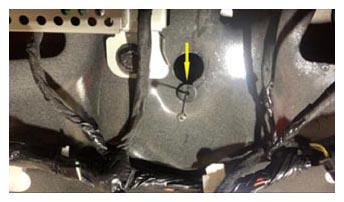

Install the liftgate emergency release onto the mounting point on the liftgate.
NOTE: Push down firmly on cable to properly seat it into the liftgate mounting point.

Courtesy of TESLA, INC.

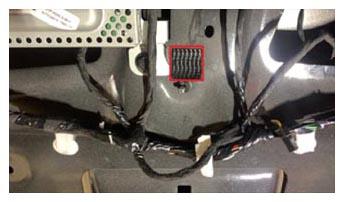

Install the Velcro patch over the emergency release cable mounting hole on the liftgate as shown in image.
NOTE: Ensure the Velcro is tight to the liftgate and properly centered, as emergency handle will be attached in the next step.

Courtesy of TESLA, INC.

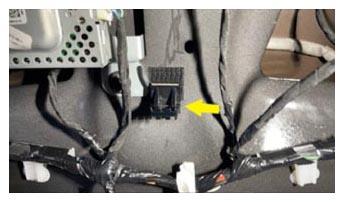

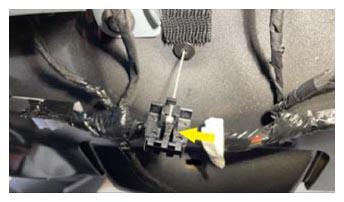

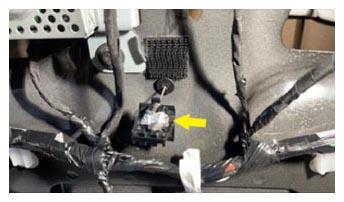

Reapply the small butyl patch, move the liftgate emergency release handle into position, and then secure the locking tab and Velcro patch.
NOTE: Make sure the locking tab is fully securing the release cable.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

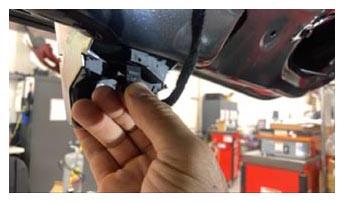

Connect the liftgate latch electrical connector.

Courtesy of TESLA, INC.
Install the liftgate cinching actuator. See ACTUATOR - CINCHING - LIFTGATE (REMOVE AND REPLACE) .
