Rear Door Hinge - Secondary - Front - LH (Remove And Replace: Remove

  1. Open the LH doors and lower the LH windows.
  2. Remove the LH upper rear door glass assembly. See DOOR GLASS ASSEMBLY - REAR - UPPER - LH (REMOVE AND REPLACE) .

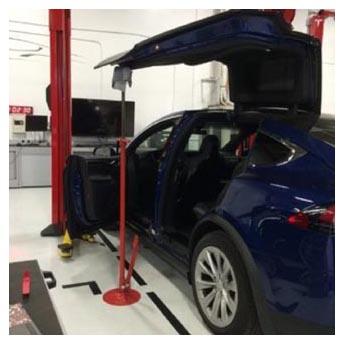

  3. Support the LH falcon wing door.
    CAUTION: Place protection between the stand and door.
    G15391260Courtesy of TESLA, INC.
  4. Disconnect the LH falcon wing door front and rear strut electrical connectors (x4).
    G15391261Courtesy of TESLA, INC.

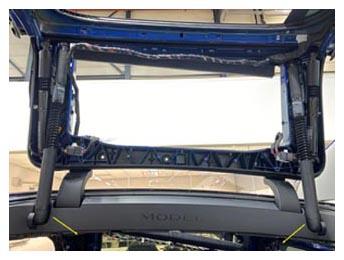

  5. Remove the C-clip covers (x2) from the LH falcon wing door front and rear primary struts.
    NOTE: The clips are located on the bottom portion of each strut.
    G15391262Courtesy of TESLA, INC.

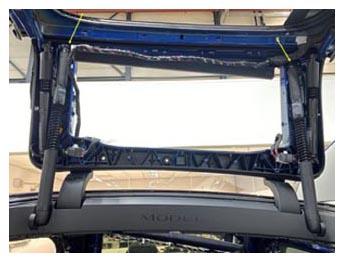

  6. Release the LH falcon wing door front and rear primary struts from the door assembly.
    NOTE: Release the C-clip while pulling the strut away from the ball joint.
    NOTE: Do not fully remove the C-clip from the strut.
    G15391263Courtesy of TESLA, INC.

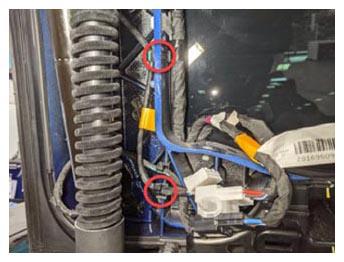

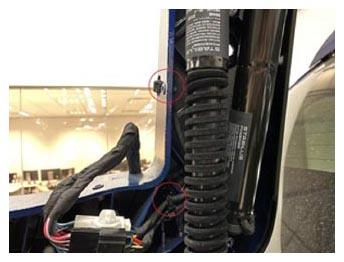

  7. Release the clips (x4) that attach the LH falcon wing door primary strut harnesses to the door assembly.
    G15391264Courtesy of TESLA, INC.
    G15391265Courtesy of TESLA, INC.

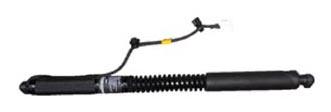

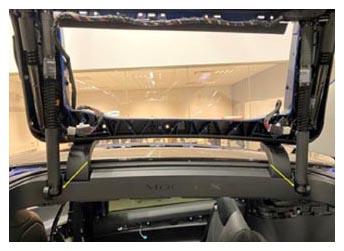

  8. Release the LH falcon wing door front and rear primary struts from the body, and then remove the struts from the door assembly.
    NOTE: Release the C-clip while pulling the strut away from the ball joint.
    NOTE: Do not fully remove the C-clip from the strut.
    G15391266Courtesy of TESLA, INC.
    G15391267Courtesy of TESLA, INC.

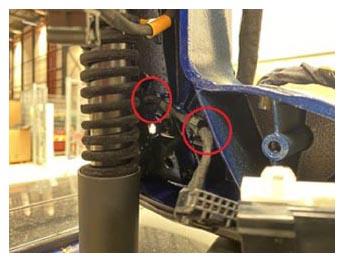

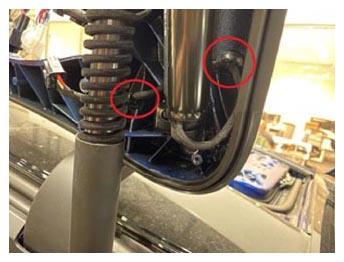

  9. Release the clips (x4) that attach the LH falcon wing door secondary strut harnesses to the door assembly.
    G15391268Courtesy of TESLA, INC.
    G15391269Courtesy of TESLA, INC.

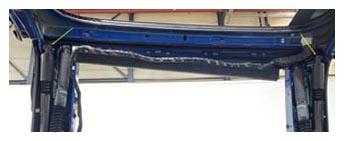

  10. Release the LH falcon wing door front and rear secondary struts from the door assembly.
    NOTE: Release the C-clip while pulling the strut away from the ball joint.
    NOTE: Do not fully remove the C-clip from the strut.
    G15391270Courtesy of TESLA, INC.

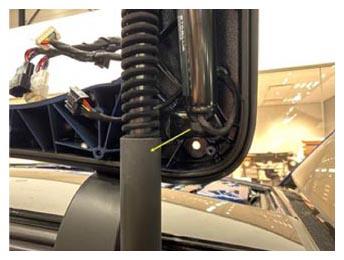

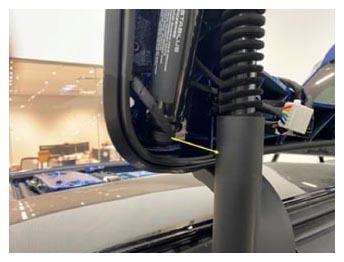

  11. Release the LH falcon wing door front and rear secondary struts from the body.
    NOTE: Release the C-clip while pulling the strut away from the ball joint.
    NOTE: Do not fully remove the C-clip from the strut.
    G15391271Courtesy of TESLA, INC.
    G15391272Courtesy of TESLA, INC.
    G15391273Courtesy of TESLA, INC.
  12. With assistance, remove the support stand, and then close the LH falcon door.
    WARNING: The LH falcon door will retract after the stand is removed.

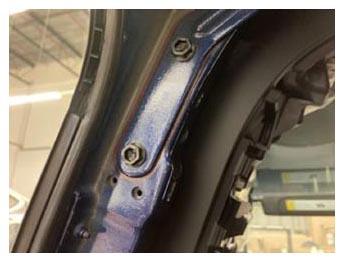

  13. Mark the position of the lower falcon door to the upper falcon door assembly.
    G15391274Courtesy of TESLA, INC.

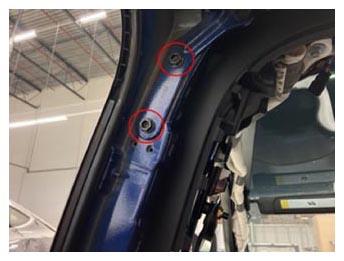

  14. Remove the bolts (x2) that attach the LH front secondary rear door hinge to the lower door assembly.

    24 N.m (17.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 13 mm socket
    G15391275Courtesy of TESLA, INC.

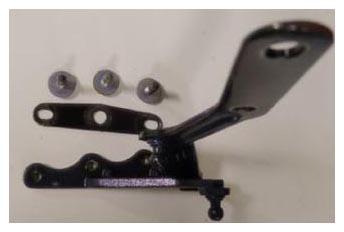

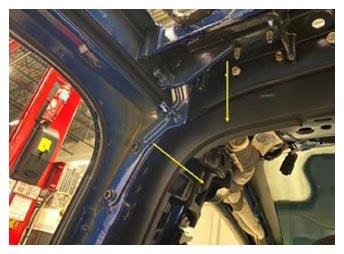

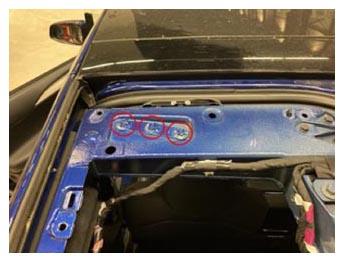

  15. Remove the bolts (x3) that attach the LH front secondary rear door hinge to the upper door assembly, and then remove the hinge from the vehicle.

    32 N.m (23.6 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • External Torx E18
    G15391276Courtesy of TESLA, INC.
    G15391277Courtesy of TESLA, INC.
    G15391278Courtesy of TESLA, INC.
