Hinge - Door - Front - Upper - LH - Remove And Replace: Install

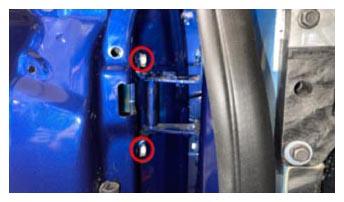

Position the LH upper front door hinge onto the LH front door, and then install the bolts (x2) that attach the hinge to the door.
24 N.m (17.7 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 12 mm socket
Courtesy of TESLA, INC.

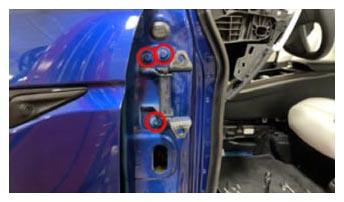

Position the LH upper front door hinge onto the body side, and then install the bolts (x3) that attach the hinge to the body.
25 N.m (18.4 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 12 mm socket
Courtesy of TESLA, INC.

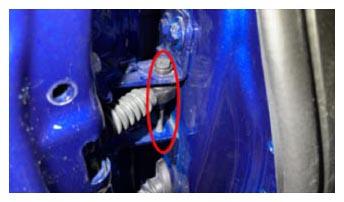

Install the pivot pin bolt that attaches the LH front door drive unit to the vehicle.
10 N.m (7.4 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- T30 socket
Courtesy of TESLA, INC.
Remove the masking tape.
Close the LH front door.

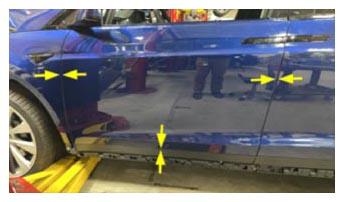

Check the gap and flush of the LH front door to the surrounding components and adjust as necessary.
NOTE: Refer to CVIS for current gap/flush specifications.

Courtesy of TESLA, INC.
Raise the front windows and close the LH front door.
