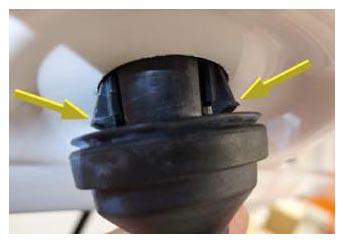

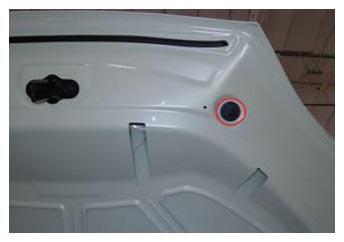

Release the tabs (x3) and datum that attach the hood sprung bumper to the hood, and then remove the bumper from the hood.
NOTE:

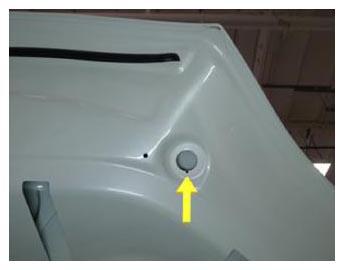

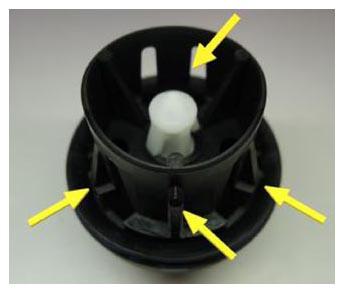

The datum is located at the 6 o'clock position. The tabs are located at the 12, 4, and 7 o'clock positions.
