Install the hood sprung bumper into the hood.
NOTE:

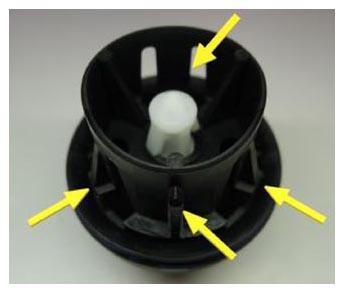

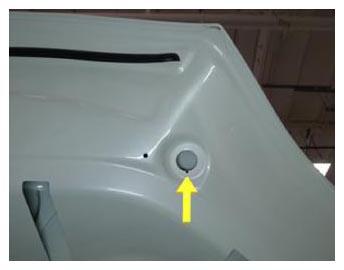

The datum is located at the 6 o'clock position. The tabs are located at the 12, 4, and 7 o'clock positions.
NOTE:

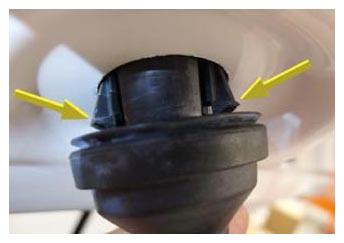

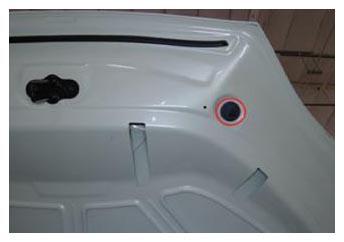

Ensure all the tabs are engaged and the bumper is flush to the hood.
