Bump Stop - Rear Door - LH - Remove And Replace: Install

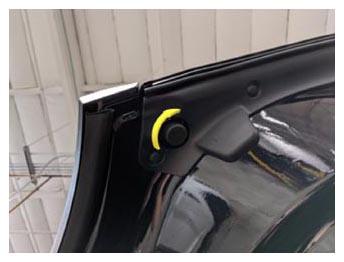

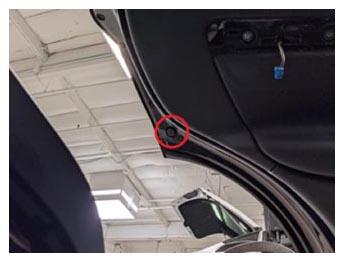

  1. Position the LH rear door bump stop onto the LH rear door, and then rotate the bump stop clockwise to install into the door.
    NOTE: Set the height to previously recorded level.
    G15391045Courtesy of TESLA, INC.
    G15391046Courtesy of TESLA, INC.
  2. Close the LH falcon wing door.

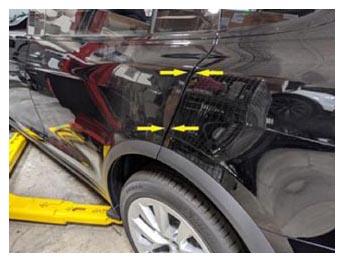

  3. Check the gap and flush of the LH falcon wing door to the quarter panel and adjust as necessary.
    NOTE: Refer to CVIS for current gap/flush specifications.
    G15391047Courtesy of TESLA, INC.
