Ball Stud Bracket - Front - Rear Door - LH - Remove And Replace: Install

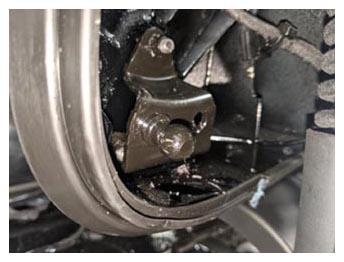

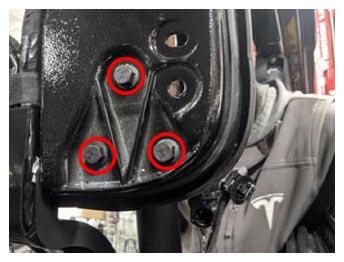

Position the LH rear door front ball stud bracket into the LH upper rear door assembly, and then install the bolts (x3) that attach the bracket to the door assembly.
12 N.m (8.8 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

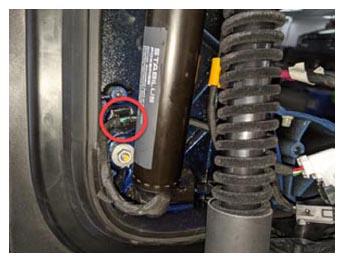

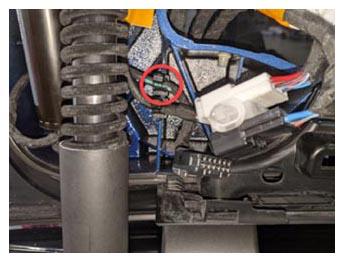

Fasten the clips (x2) that attach the LH rear door secondary strut harness to the LH rear door.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

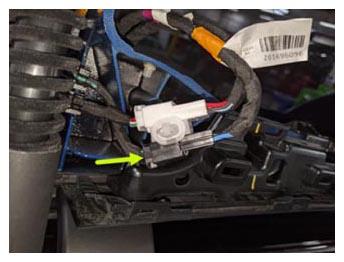

Connect the LH rear door secondary strut harness electrical connector.

Courtesy of TESLA, INC.

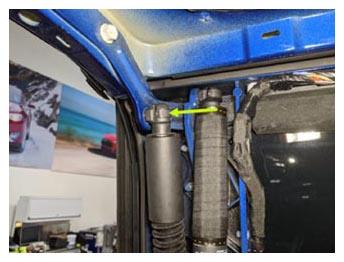

Install the LH rear door secondary strut onto the LH rear door, and then secure the C-clip.

Courtesy of TESLA, INC.
Remove the support stand.
Install the LH upper rear door glass assembly. See DOOR GLASS ASSEMBLY - REAR - UPPER - LH (REMOVE AND REPLACE) .
Raise the LH windows and close the LH front door.
