Trim - Lower - Fascia - Rear - Remove And Replace: Install

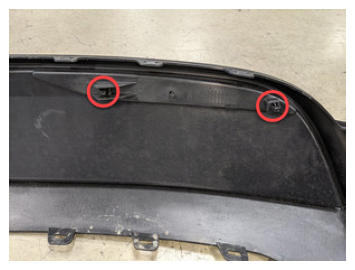

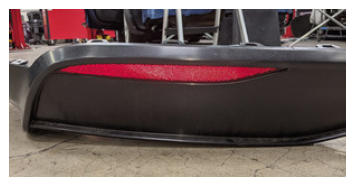

Position the LH side reflex lamp into the lower rear fascia assembly, and then secure the clips (x2) that attach the lamp to the assembly. Repeat this step for the RH side reflex lamp.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

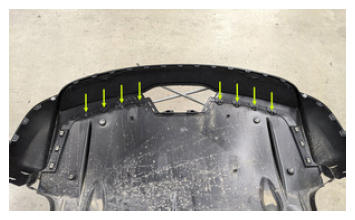

Position the lower rear fascia onto the rear diffuser, and then secure the tabs (x8) that attach the fascia to the diffuser.

Courtesy of TESLA, INC.

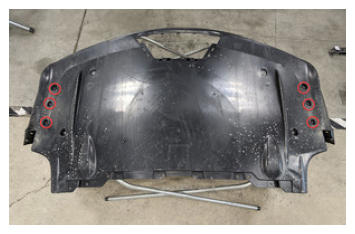

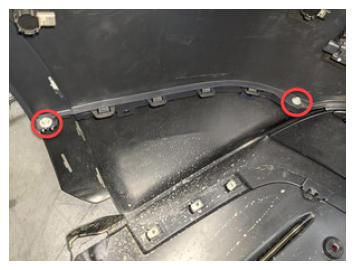

Install the bolts (x6) that attach the lower rear fascia assembly to the rear diffuser.
5 N.m (3.7 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
Courtesy of TESLA, INC.

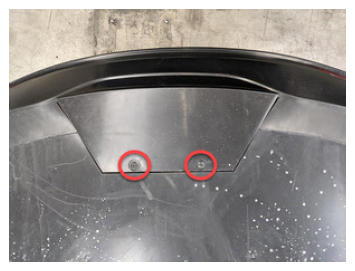

Position the trailer hitch cover into the lower rear fascia assembly, and then secure the clips (x2) and tabs (x10) that attach the cover to the assembly.

Courtesy of TESLA, INC.

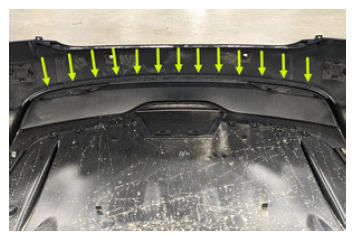

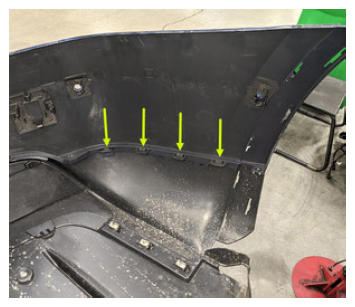

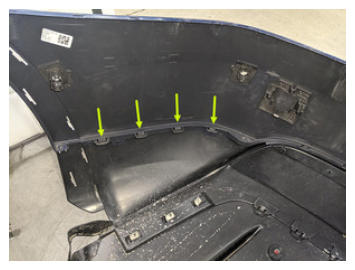

Position the upper rear fascia assembly onto the lower rear fascia assembly, and then secure the tabs (x21) that attach the upper assembly to the lower assembly.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

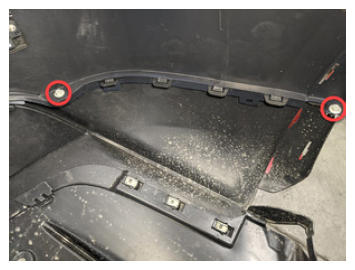

Install the screws (x4) that attach the upper rear fascia assembly to the lower rear fascia assembly.
5 N.m (3.7 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

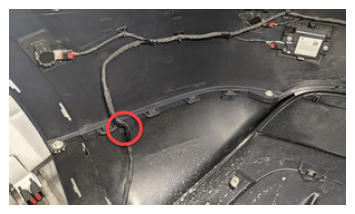

Secure the clip that attaches the rear fascia harness to the lower rear fascia assembly.

Courtesy of TESLA, INC.
Install the rear fascia assembly from the vehicle. See FASCIA ASSEMBLY - REAR (REMOVE AND INSTALL) .
Raise the front windows and close the LH front door.
