Shroud - Air Extractor - Rear - Inner - LH - Remove And Replace: Remove

  1. Remove the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace) .
  2. Release the push clips (x4) and clips (x2) that attach the rear wall load support.

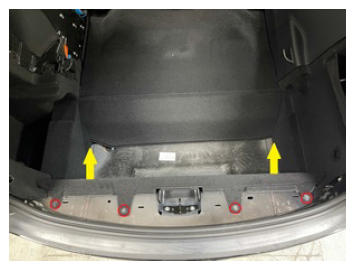

    G15389265Courtesy of TESLA, INC.

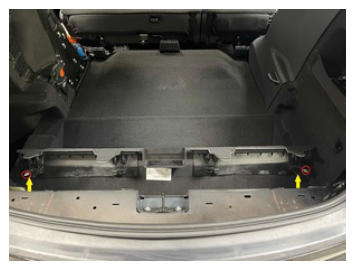

    G15389266Courtesy of TESLA, INC.

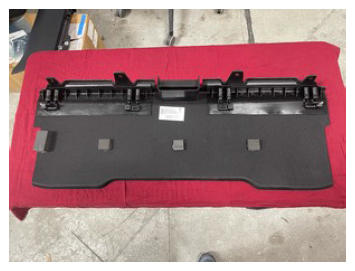

    G15389267Courtesy of TESLA, INC.
  3. Pull the LH inner rear air extractor shroud from the body, and then remove the shroud from the vehicle.
    NOTE: Shroud is held with double sided tape.

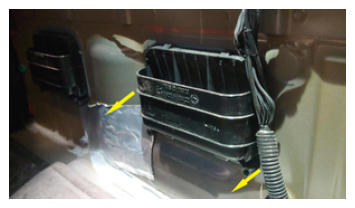

    G15389268Courtesy of TESLA, INC.

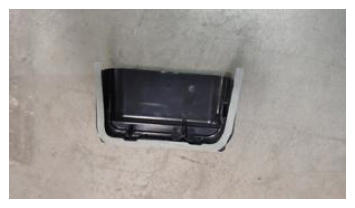

    G15389269Courtesy of TESLA, INC.
