Shroud - Air Extractor - Rear - Inner - LH - Remove And Replace: Install

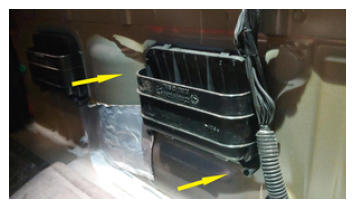

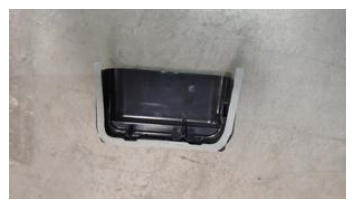

  1. Remove the adhesive backing from the LH inner rear air extractor shroud, line up the shroud to the air extractor, and then press the shroud into the body.
    NOTE: Press firmly on the shroud.
    G15389270Courtesy of TESLA, INC.
    G15389271Courtesy of TESLA, INC.

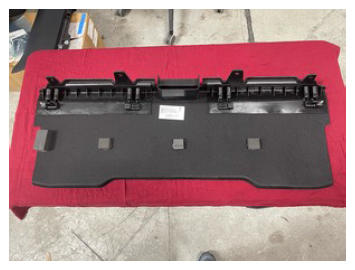

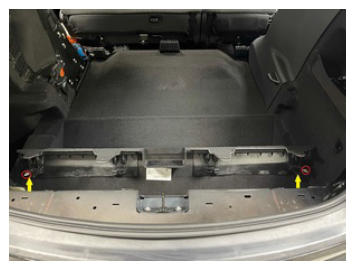

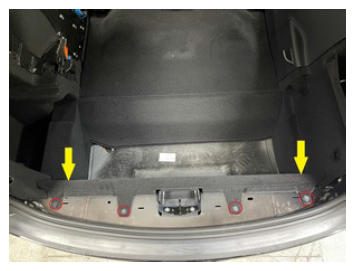

  2. Position the rear wall load floor support into the vehicle, and then install the clips (x6) that attach the support to the vehicle.
    G15389272Courtesy of TESLA, INC.
    G15389273Courtesy of TESLA, INC.
    G15389274Courtesy of TESLA, INC.
  3. Install the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace) .
