Grille - Fascia - Front - Remove And Replace: Remove

  1. Remove the front fascia assembly from the vehicle. See FASCIA ASSEMBLY - FRONT (REMOVE AND INSTALL) .
  2. Release the clips (x4) that attach the front fascia harness surrounding the front fascia grille.

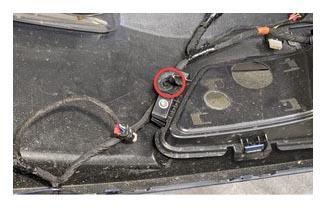

    G15389248Courtesy of TESLA, INC.

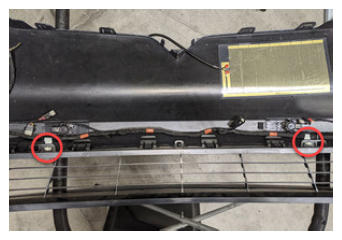

    G15389249Courtesy of TESLA, INC.

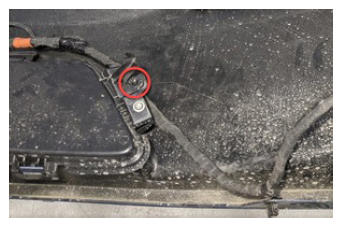

    G15389250Courtesy of TESLA, INC.
  3. Remove the bolts (x2) that attach the front fascia grille to the front fascia assembly.

    1 N.m (.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T25 socket

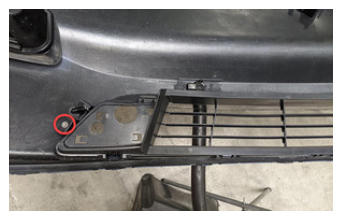

    G15389251Courtesy of TESLA, INC.

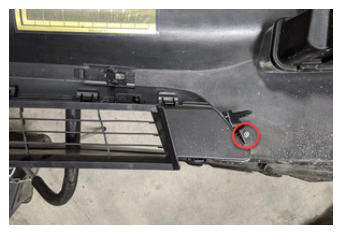

    G15389252Courtesy of TESLA, INC.
  4. Release the tabs (x11) that attach the front fascia grille to the front fascia assembly, and then remove the grille from the assembly.

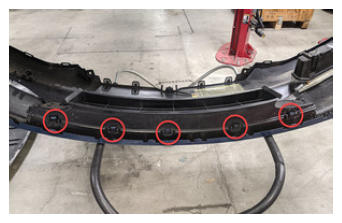

    G15389253Courtesy of TESLA, INC.

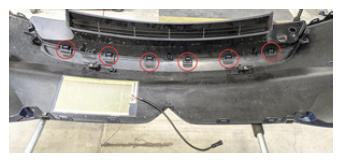

    G15389254Courtesy of TESLA, INC.

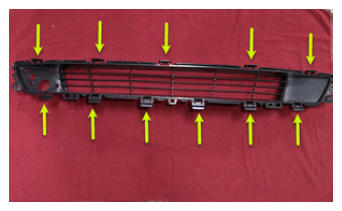

    G15389255Courtesy of TESLA, INC.
