Grille - Fascia - Front - Remove And Replace: Install

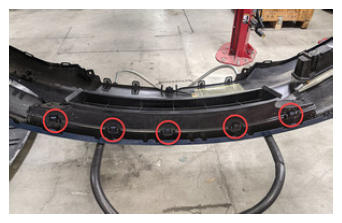

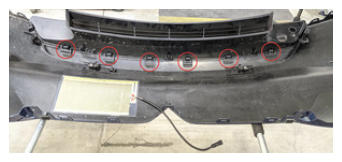

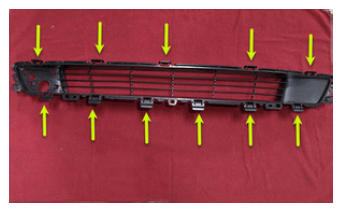

  1. Position the front fascia grille into the front fascia assembly, and then secure the tabs (x11) that attach the grille to the assembly.
    NOTE: Position tabs into place prior to applying pressure.
    NOTE: Verify the grille is fully seated.
    G15389256Courtesy of TESLA, INC.
    G15389257Courtesy of TESLA, INC.
    G15389258Courtesy of TESLA, INC.

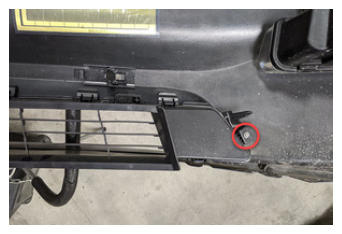

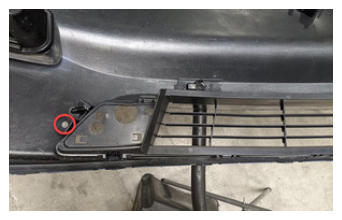

  2. Install the bolts (x2) that attach the front fascia grille to the front fascia assembly.

    1 N.m (.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T25 socket
    G15389259Courtesy of TESLA, INC.
    G15389260Courtesy of TESLA, INC.

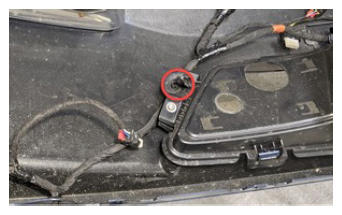

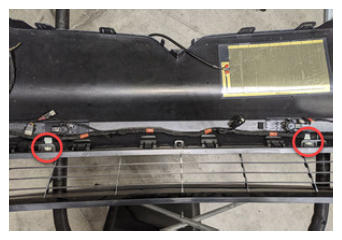

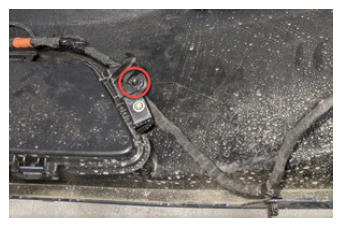

  3. Secure the clips (x4) that attach the front fascia harness surrounding the front fascia grille.
    G15389261Courtesy of TESLA, INC.
    G15389262Courtesy of TESLA, INC.
    G15389263Courtesy of TESLA, INC.
  4. Install the front fascia assembly onto the vehicle. See FASCIA ASSEMBLY - FRONT (REMOVE AND INSTALL) .
