- Open the LH front door.
- Lower the LH front window.

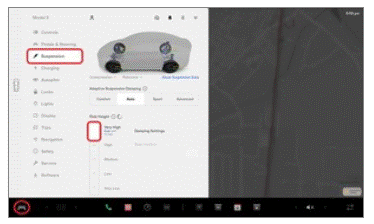

- Set air suspension ride height to "Very High"
NOTE:
Via center display > Controls > Suspension > "Very High"
 Courtesy of TESLA, INC.
|

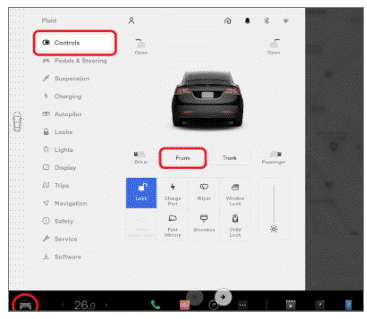

- Open the hood.
 Courtesy of TESLA, INC.
|

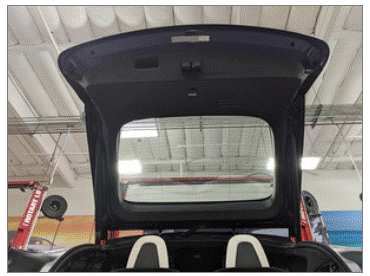

- Open liftgate
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

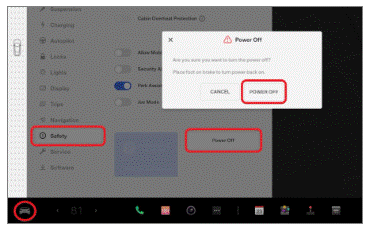

- Power off the vehicle using the touchscreen.
 Courtesy of TESLA, INC.
|

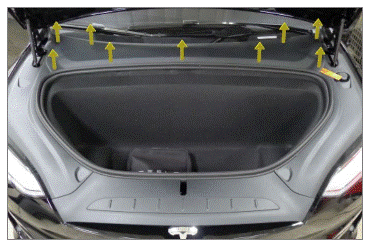

- Remove the rear underhood apron.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

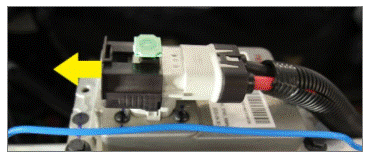

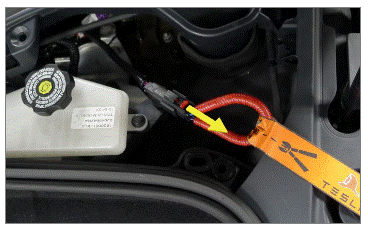

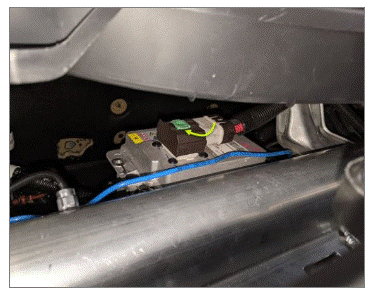

- Disconnect the LV battery connector and First Responder Loop.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

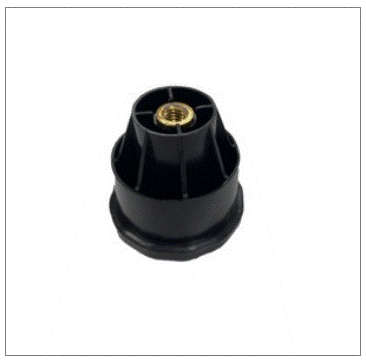

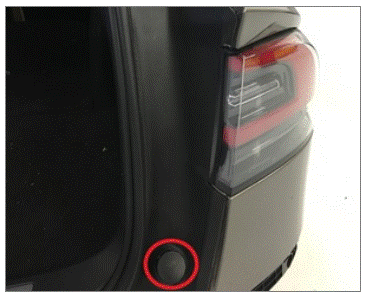

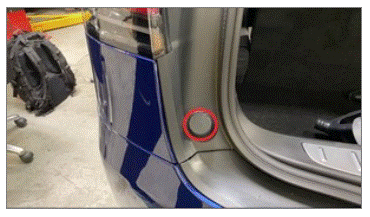

- Remove RH liftgate stop from vehicle
NOTE:
1x bump stop
 Courtesy of TESLA, INC.
|
- Remove LH liftgate stop from vehicle
NOTE:
1x bump stop
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

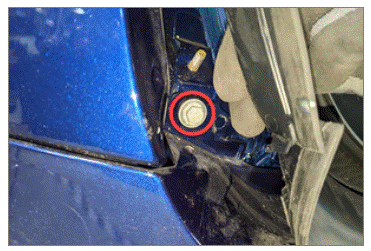

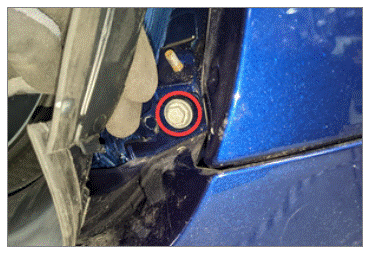

- Remove bolt securing LH top of fascia to bracket
NOTE:
1x bolts, 10mm, 4 N.m, Lift up on the outer section where upper trough and lower trough meet, Be cautious not to remove double sided tape, This will allow access to the bolt without fully removing trim
 Courtesy of TESLA, INC.
|
- Remove bolt securing RH top of fascia to bracket
NOTE:
1x bolts, 10mm, 4 N.m, Lift up on the outer section where upper trough and lower trough meet, Be cautious not to remove double sided tape, This will allow access to the bolt without fully removing trim
 Courtesy of TESLA, INC.
|

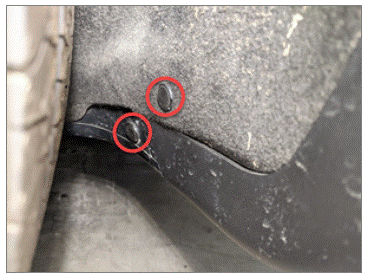

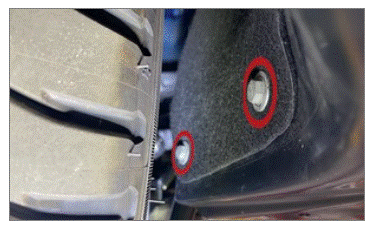

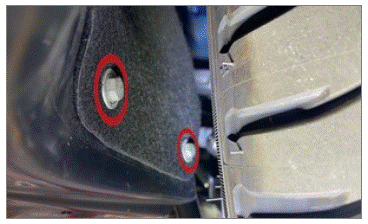

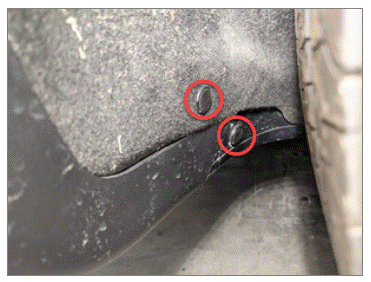

- Remove clip and bolts securing RH rear fender garnish and arch liner
NOTE:
2x push clips, 2x bolts, 10mm, 5 N.m
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

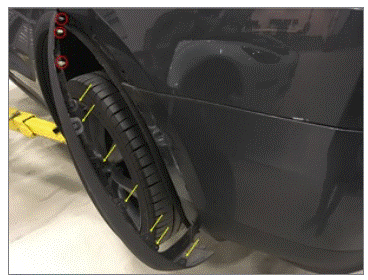

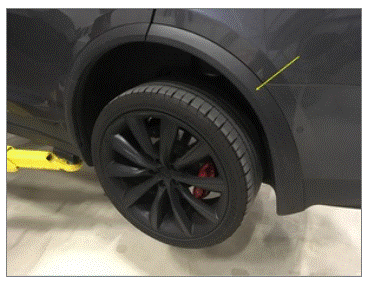

- Partially release RH rear fender garnish from rear fascia
NOTE:
3x clips, 7 tabs
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

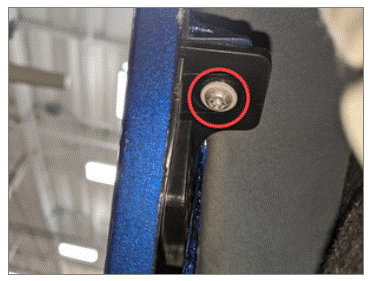

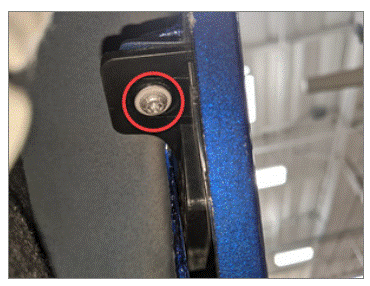

- Remove screw securing RH rear fascia to quarter panel
NOTE:
1x screw, T25, 1.5 N.m
 Courtesy of TESLA, INC.
|
- Remove clips and bolts securing LH rear fender garnish and arch liner
NOTE:
2x push clips, 2x bolts, 10mm, 5 N.m
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

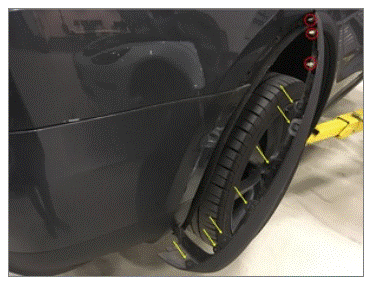

- Partially release LH rear fender garnish from rear fascia
NOTE:
3x clips, 7 tabs
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove screw securing LH rear fascia to quarter panel
NOTE:
1x screw, T25, 1.5 N.m
 Courtesy of TESLA, INC.
|

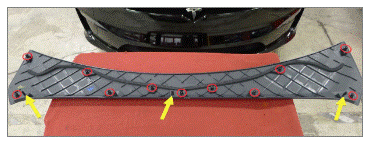

- Remove fasteners securing rear diffuser to rear fascia
NOTE:
6x bolts, 10mm, 6 N.m, 2x clips
 Courtesy of TESLA, INC.
|

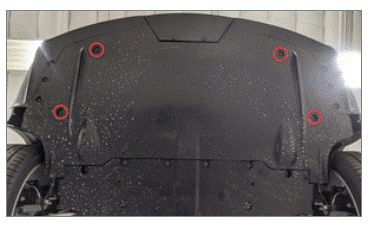

- Remove bolts securing rear lower valence to body
NOTE:
4x bolts, 10mm, 3 N.m
 Courtesy of TESLA, INC.
|

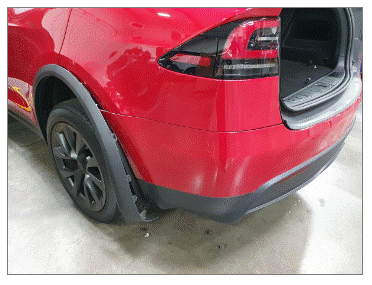

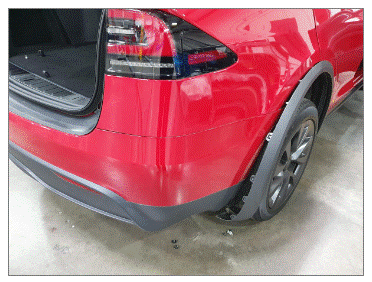

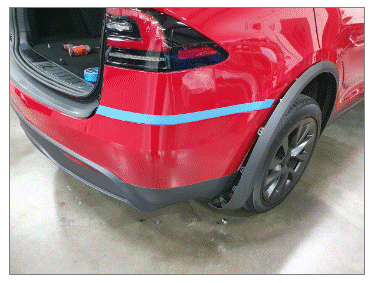

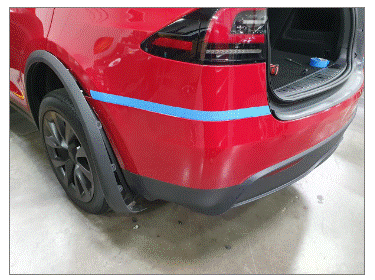

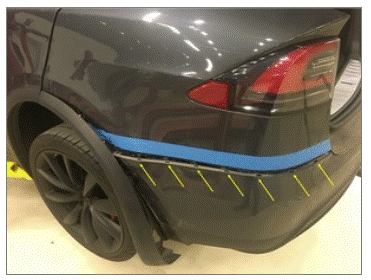

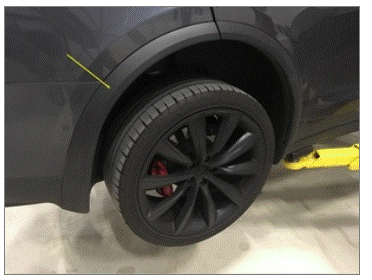

- Apply masking tape to protect RH rear quarter panel
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Apply masking tape to protect LH rear quarter panel
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

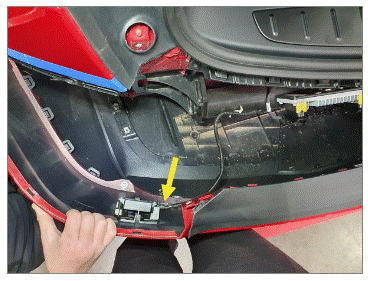

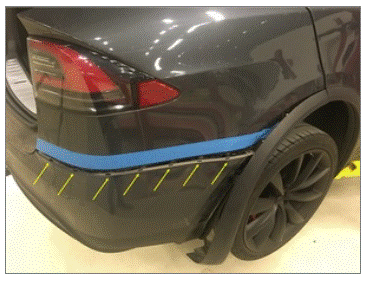

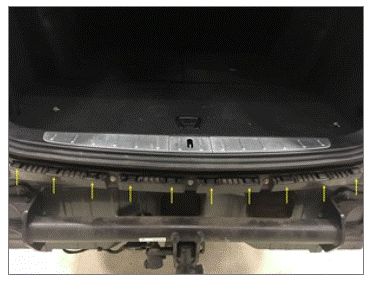

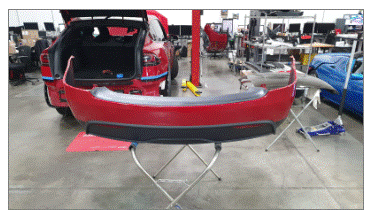

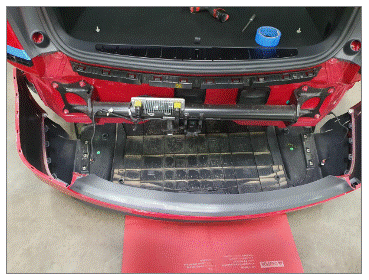

- Remove rear fascia from vehicle
NOTE:
2x connectors, 24x tabs, 1st release LH and RH fascia edges from fender brackets, 2nd Pull fascia rearward to detach from vehicle, 3rd reach in and disconnect both BLE connectors before setting fascia on the bench, Recommended assistance, Place on protected surface
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

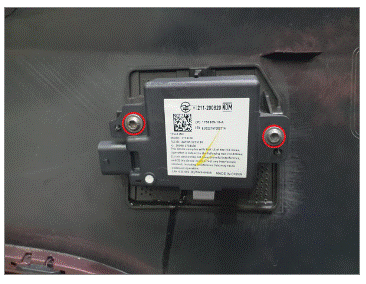

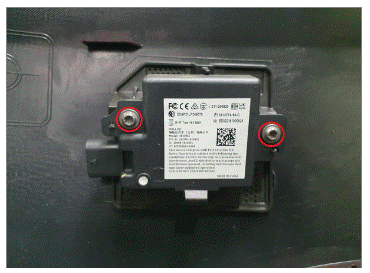

- Remove both RH and LH BLE assembly's from rear fascia
NOTE:
2x screws, T25, 3 N.m, 2x datums
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

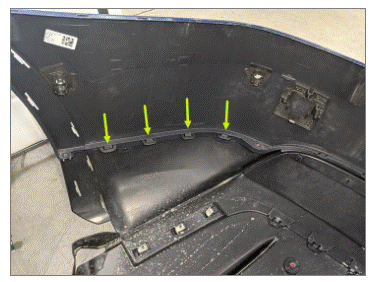

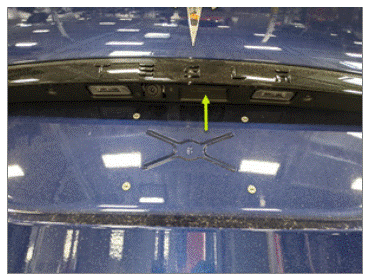

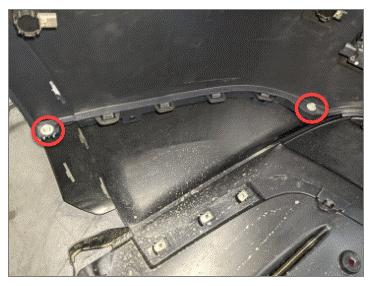

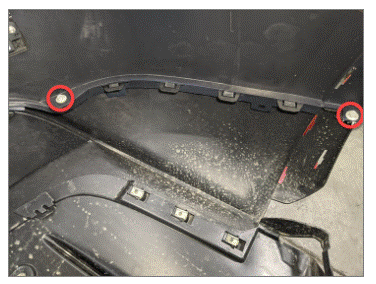

- Remove bolts securing rear upper fascia to rear lower fascia
NOTE:
4x screws, 10mm, 5 N.m
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

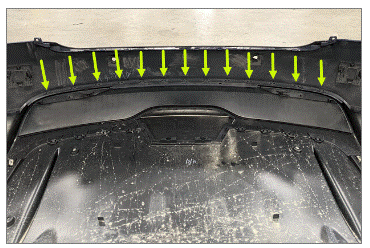

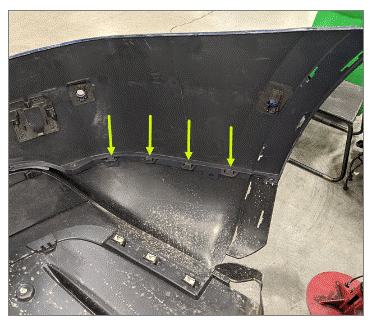

- Remove rear upper fascia from rear lower fascia
NOTE:
21x tabs
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
