Bracket - Fascia to Fender - LH - Remove And Replace: Remove

Press the brake pedal to turn on the drive rails.
On the vehicle touchscreen, set the air suspension ride height to "Very High."
NOTE: Touch Controls > Suspension > Very High
On the vehicle touchscreen, set the suspension into "Jack Mode."
NOTE: Touch Controls > Service > Jack Mode
Turn the steering wheel fully to the right.
Remove LH front fender garnish. See Garnish - Fender - Front - LH (Remove and Replace) .

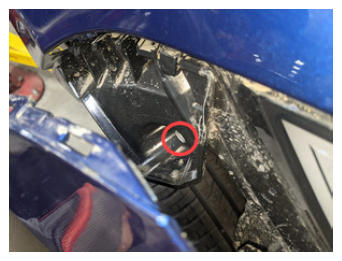

Remove the screw that attaches the LH front of fascia to the fender.
1.5 N.m (1.1 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T25 bit
Courtesy of TESLA, INC.

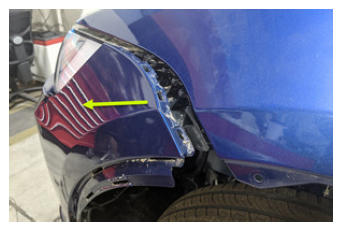

Release the tabs (x3) that attach the LH side of the front fascia to the fender.

Courtesy of TESLA, INC.

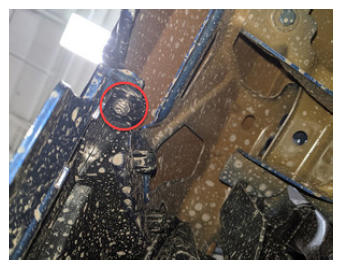

Remove the bolt that attaches the LH front side of the fascia to fender bracket.
4.7 N.m (3.5 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 10 mm deep socket
Courtesy of TESLA, INC.

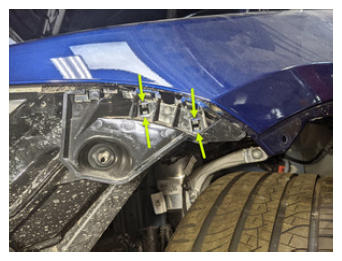

Release the tabs (x4) that attach the LH fascia to fender bracket.

Courtesy of TESLA, INC.
