Bracket - Fascia to Fender - LH - Remove And Replace: Install

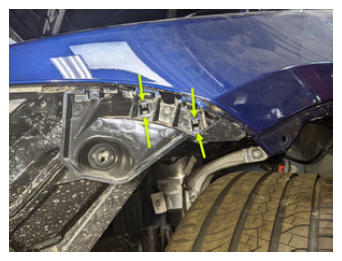

Secure the LH fascia to fender bracket with tabs (x4).
NOTE: Verify that the tabs are fully engaged.

Courtesy of TESLA, INC.

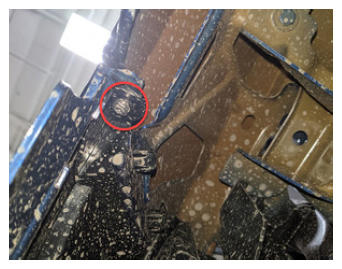

Install the bolt that attaches the LH fascia to fender bracket.
4.7 N.m (3.5 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 10 mm deep socket
Courtesy of TESLA, INC.

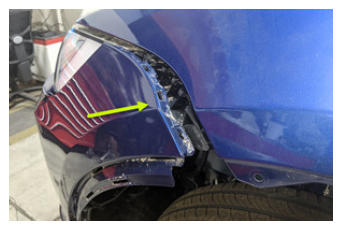

Secure the LH side of the front fascia to fender with tabs (x3),

Courtesy of TESLA, INC.

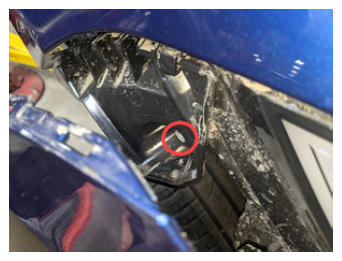

Install the screw that attaches the LH front of fascia to the fender.
1.5 N.m (1.1 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T25 bit
Courtesy of TESLA, INC.
Install the LH front fender garnish. See Garnish - Fender - Front - LH (Remove and Replace) .
On the vehicle touchscreen, remove the air suspension from "Jack Mode."
NOTE: Touch Controls > Service > Jack Mode
On the vehicle touchscreen, set the air suspension ride height to "Medium".
NOTE: Touch Controls > Suspension > Medium
