Bracket - Attachment - Fascia - Rear - Remove And Replace: Remove
- Remove the rear fascia assembly. See FASCIA ASSEMBLY - REAR (REMOVE AND INSTALL) .

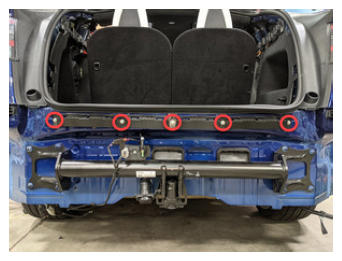

- Remove the bolts (x5) that attach the rear fascia attachment bracket to the body, and then remove the bracket from the vehicle.
3 N.m (2.2 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
