- Measure the gap and flush of LH falcon door according to specification
NOTE:
Record that data and use it as a base line when installing the new door
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Open LH front door
 Courtesy of TESLA, INC.
|
- Lower both LH side windows
 Courtesy of TESLA, INC.
|
- Move LH front seat forward
 Courtesy of TESLA, INC.
|
- Open LH falcon wing door
 Courtesy of TESLA, INC.
|
- Remove LH falcon door lower garnish
NOTE:
9x V-clips, Replace any damaged or missing clips, Take care not to damage door trim panel during removal
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove LH upper falcon door trim
NOTE:
17x clips, 1x connector may be present on early production vehicles
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove LH falcon rear upper bracket
NOTE:
5x bolts, T25, 2.5 N.m, 4.0 N.m, 1x harness clip, Fastener count may vary
 Courtesy of TESLA, INC.
|
- Remove LH falcon front upper bracket
NOTE:
5x bolts, T25, 2.5 N.m, 4.0 N.m, 1x harness clip
 Courtesy of TESLA, INC.
|
- Remove LH upper outer falcon door middle trim
NOTE:
7x bolts, T25, 3.0 N.m, 4.0 N.m, Fastener count may vary
 Courtesy of TESLA, INC.
|
- Remove LH upper gap hider trim
NOTE:
4x clips
 Courtesy of TESLA, INC.
|
- Lower LH falcon door
NOTE:
May need to assist the door to close
 Courtesy of TESLA, INC.
|
- Remove LH falcon door upper glass
NOTE:
10x nuts, 10 mm, 6 N.m, Recommend assistance
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove LH rear decor trim panel
NOTE:
7x clips, 2x connectors
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove bolts securing LH rear door panel to door
NOTE:
8x bolts, 10 mm, 6 N.m
 Courtesy of TESLA, INC.
|
- Remove LH rear door trim panel
NOTE:
13x clips, 2x connectors
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Open LH falcon wing door
 Courtesy of TESLA, INC.
|
- Support the rear door
NOTE:
May need assist to open
 Courtesy of TESLA, INC.
|
- Open hood
NOTE:
Via center display > Controls > Frunk Open
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove rear underhood apron
NOTE:
11x clips, 2x datums
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Power off vehicle via center display
NOTE:
Controls > Safety & Security > Power Off
 Courtesy of TESLA, INC.
|
- Disconnect LV battery connector and First Responder Loop
NOTE:
2x connectors, Lift up and release green locking tab, Pull black connector lock outwards to release connection, Release red lock tab on FRL
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Release clips securing harness connectors to closeout panel
NOTE:
3x clips
 Courtesy of TESLA, INC.
|
- Disconnect connectors for upper harness
NOTE:
2x locking connectors, 1x connector
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove bolt securing ground to LH lower falcon door
NOTE:
1x bolt, 10 mm, 10 N.m
 Courtesy of TESLA, INC.
|

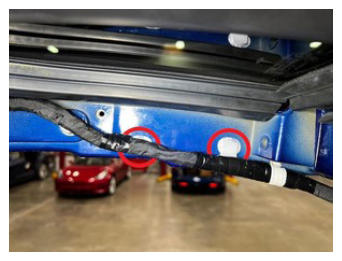

- Remove clips securing harness to LH lower falcon door
NOTE:
5x clips
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Mark the position of the lower falcon door to the upper falcon door assembly
 Courtesy of TESLA, INC.
|
- Remove the lower falcon door from vehicle
NOTE:
4x bolts, 13 mm, 24 N.m, Recommend assistant to hold the lower falcon door.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Disconnect both front and rear falcon door strut connectors
NOTE:
4x connectors
 Courtesy of TESLA, INC.
|
- Remove the upper falcon door harness clips and route the harness to back of the falcon door
NOTE:
7x clips, Protect the spine applique
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove the front primary strut from upper falcon door
NOTE:
1x C-clip, 1x harness clip
 Courtesy of TESLA, INC.
|
- Remove the rear primary strut from upper falcon door
NOTE:
1x C-clip, 1x harness clip
 Courtesy of TESLA, INC.
|
- Pull the upper falcon door lower to mark the hinges
NOTE:
The upper door is still spring loaded, Recommend assistance if necessary, Caution: the upper falcon door hinges are spring loaded and will retract to the open position.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove the LH upper falcon door from vehicle
NOTE:
4 x 13 mm bolts, 24 N.m, Loosen bolts in closed position, Remove bolts in open position, Recommend assistance if necessary
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Lay LH rear door upper harness on top of vehicle
NOTE:
Use fender cover to protect spine and roof glass
 Courtesy of TESLA, INC.
|
- Remove front secondary strut with bracket from upper falcon door
NOTE:
1x C-clips, 2x harness clips, 3x bolts, 10 mm, 12 N.m
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove rear secondary strut with bracket from upper falcon door
NOTE:
1x C-clips, 2x harness clips, 3x bolts, 10 mm, 12 N.m
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove front secondary hinge assembly with clamp bracket
NOTE:
3x bolts, E18, 32 N.m, Recommend assistance
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove rear secondary hinge assembly with clamp bracket
NOTE:
3x bolts, E18, 32 N.m, Recommend assistance
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove LH front upper falcon door bump stop assembly
NOTE:
2x bolts, 10 mm, 8 N.m, 1x screw, T30, 5 N.m
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove LH rear upper falcon door bump stop assembly
NOTE:
2x bolts, 10 mm, 8 N.m, 1x screw, T30, 5 N.m
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Use IPA clean NVH seal area of the new upper falcon door
NOTE:
Allow 1 minute drying time
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Apply adhesive promoter to NVH seal area of the new upper falcon door
NOTE:
Allow 1 minute drying time
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install new upper falcon door NVH seal to new upper falcon door
NOTE:
Use roller to press the seal in place
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install LH front upper falcon door bump stop assembly
NOTE:
2x bolts, 10 mm, 8 N.m, 1x screw, T30, 5 N.m
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install LH rear upper falcon door bump stop assembly
NOTE:
2x bolts, 10 mm, 8 N.m, 1x screw, T30, 5 N.m
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install the rear secondary hinge assembly with bracket
NOTE:
3x bolts, E18, 32 N.m
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install the front secondary hinge assembly with bracket
NOTE:
3x bolts, E18, 32 N.m
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install rear secondary strut with bracket from upper falcon door
NOTE:
1x C-clips, 2x harness clips, 3x bolts, 10 mm, 12 N.m
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install front secondary strut with bracket from upper falcon door
NOTE:
1x C-clips, 2x harness clips, 2x bolts, 10 mm, 12 N.m
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install the LH upper falcon door and hand tighten bolts
NOTE:
4x bolts, 13 mm, 24 N.m, Recommend assistance if necessary
 Courtesy of TESLA, INC.
|
- Pull the upper falcon door lower and make sure the upper falcon door is aligned and centered before tightening
NOTE:
4x bolts, 13 mm, 24 N.m, Use a rubber hammer to position upper falcon door to previous marked location, Use caution as the falcon door hinges are spring loaded and will want to retract to falcon door open position, Recommend assistance
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install the rear primary strut to upper falcon door
NOTE:
1x C-clip, 1x harness clip, Door may need to be lifted to align strut, Recommend assistance
 Courtesy of TESLA, INC.
|
- Install the front primary strut to upper falcon door
NOTE:
1x C-clip, 1x harness clip, Door may need to be lifted to align strut, Recommend assistance
 Courtesy of TESLA, INC.
|
- Install the upper falcon door harness
NOTE:
7x clips, Replace any broken clips
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Connect both front and rear falcon door strut connectors
NOTE:
4x connectors
 Courtesy of TESLA, INC.
|
- Install the lower falcon door to vehicle
NOTE:
4x bolts, 13 mm, 24 N.m, Recommend assistant to hold the lower falcon door, Ensure the lower falcon door hinges align with marked position before tightening bolts
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install clips securing harness to falcon door
NOTE:
4x clips
 Courtesy of TESLA, INC.
|
- Install bolt securing ground to LH rear door
NOTE:
1x bolt, 10 mm, 10 N.m
 Courtesy of TESLA, INC.
|
- Connect three connectors for upper harness
NOTE:
2x locking connectors, 1x connector
 Courtesy of TESLA, INC.
|
- Connect First Responder Loop and LV battery connector
NOTE:
2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage upper locking tab when fully seated
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install rear underhood apron
NOTE:
11x clips, 2x datums
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Close hood
 Courtesy of TESLA, INC.
|
- Remove door support stand
 Courtesy of TESLA, INC.
|
- Calibrate the rear doors.
NOTE:
If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate
to calibrate the rear doors.
- Check the gap and flush of LH falcon door according to specification
NOTE:
Adjust as needed
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Adjust door as close to specification as possible if necessary
NOTE:
Adjust the lower falcon door hinges, the upper corner of the lower falcon door should be adjust a bit under flush at this time, the struts should push it out once installed. Recommend assistance, 6x bolts, E18, 32 N.m, 4x bolts, 13 mm, 24 N.m
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install LH falcon door upper glass
NOTE:
10x nuts, 10 mm, 6 N.m, Recommend assistance
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Open LH falcon wing door
NOTE:
Adjust position as required
 Courtesy of TESLA, INC.
|
- Install LH rear door trim panel
NOTE:
2x connectors, 13x clips, Install door trim starting from top and make sure the door trim tab is fitted correctly on the inner belt seal
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install bolts securing LH rear door panel to door
NOTE:
8x bolts, 10 mm, 6 N.m
 Courtesy of TESLA, INC.
|
- Install LH rear door decor trim panel
NOTE:
7x clips, 2x connectors, Take care not to damage door trim panel
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install LH upper gap hider trim
NOTE:
4x clips
 Courtesy of TESLA, INC.
|
- Install LH upper outer falcon door middle trim
NOTE:
7x bolts, T25, 3.0 N.m, 4.0 N.m, Fastener count may vary
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install LH falcon front upper bracket
NOTE:
5x bolts, T25, 2.5 N.m, 4.0 N.m, 1x harness clip, Fastener count may vary
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install LH falcon rear upper bracket
NOTE:
5x bolts, T25, 2.5 N.m, 4.0 N.m, 1x harness clip, Fastener count may vary
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install LH upper falcon door trim
NOTE:
17x clips, Align strut cover first, 1x connector may be present on early production vehicles
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install LH falcon door lower garnish
NOTE:
9x V-clips, 1x guide tab
 Courtesy of TESLA, INC.
|
- Move LH front seat to original position
 Courtesy of TESLA, INC.
|
- Raise both LH side windows
 Courtesy of TESLA, INC.
|
- Close LH front door
