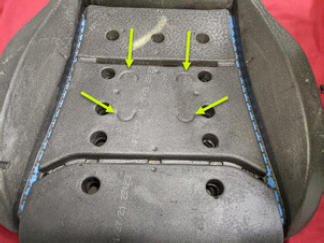

- Remove the adhesive backing on the OCS sensor, position the sensor onto the driver seat cushion foam using the locating indentations, and then gently press the sensor onto the foam.
NOTE:
Apply pressure to the area where the double sided adhesive is applied to the seat bottom foam.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

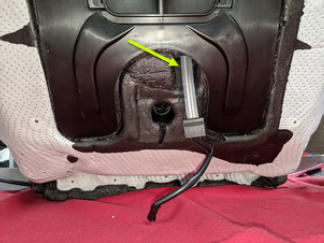

- Feed the OCS harness through the access hole on the driver seat cushion foam.
NOTE:
Lift up on the cushion bottom to fully pull the harness through the foam.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove the adhesive backings (x7) on the driver seat heat pad, position the heat pad onto the driver seat cushion foam, and then gently press the pad onto the foam.
NOTE:
The heat pad is a one time use item. If the pad is removed from the pad, it must be replaced.
 Courtesy of TESLA, INC.
|
- Install the driver seat cushion trim. See COVER - CUSHION - DRIVER SEAT (REMOVE AND REPLACE) .
- Install the driver seat into the vehicle. See SEAT ASSEMBLY - 1ST ROW - LH (REMOVE AND INSTALL)
.
