Foam - Back Rest - Driver Seat - Remove And Replace: Install

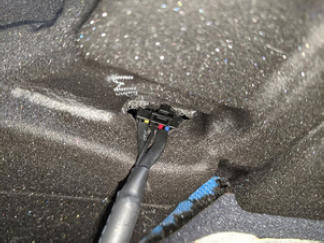

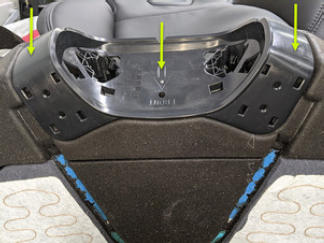

  1. Position the driver seat microphone onto the driver back rest foam, and then feed the harness through the access on the foam to install the microphone onto the foam.
    NOTE: Feed harness through access hole on seat back foam
    G15404960Courtesy of TESLA, INC.
    G15404961Courtesy of TESLA, INC.

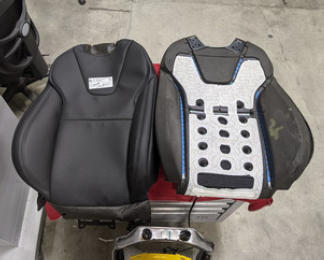

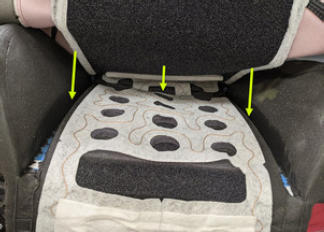

  2. Position the driver seat back rest trim onto the driver seat back rest foam, and then align the Velcro strips (x4).
    G15404962Courtesy of TESLA, INC.
    G15404963Courtesy of TESLA, INC.
    G15404964Courtesy of TESLA, INC.

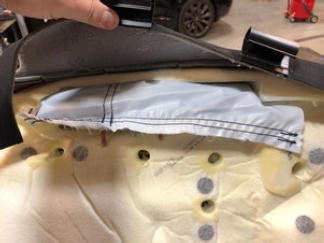

  3. Install the driver side airbag into the airbag chute, and then slide the airbag chute with the airbag inside through the slot in the seat back foam.
    CAUTION: Make sure that the driver side airbag mounting studs extend out of the holes of the chute.
    CAUTION: Handle the airbag with extreme care when installing it into the airbag chute. The airbag is configured/folded in a specific manner and will need to be replaced if it is dropped, altered or manipulated in any way.
    NOTE: Refer to the following video for proper care when installing the driver side airbag into the airbag chute, and when installing the chute through the seat foam.
    multimedia:A supplement to the article is available.
    G15404966Courtesy of TESLA, INC.
  4. With assistance, maneuver the driver seat back trim and foam assembly downward onto the seat frame to install it onto the seat assembly.
    G15404967Courtesy of TESLA, INC.

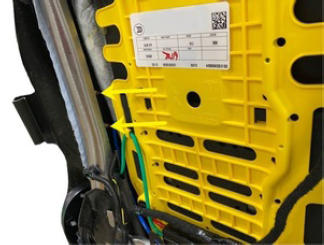

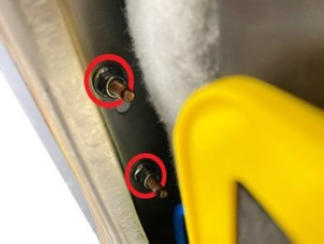

  5. Install new nuts (x2) that attach the driver seat side air bag to the seat back frame assembly.

    5.4 N.m (4.0 ft-lbs)

    CAUTION: Do not use impact tools to torque the nuts.

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15404968Courtesy of TESLA, INC.
    G15404969Courtesy of TESLA, INC.

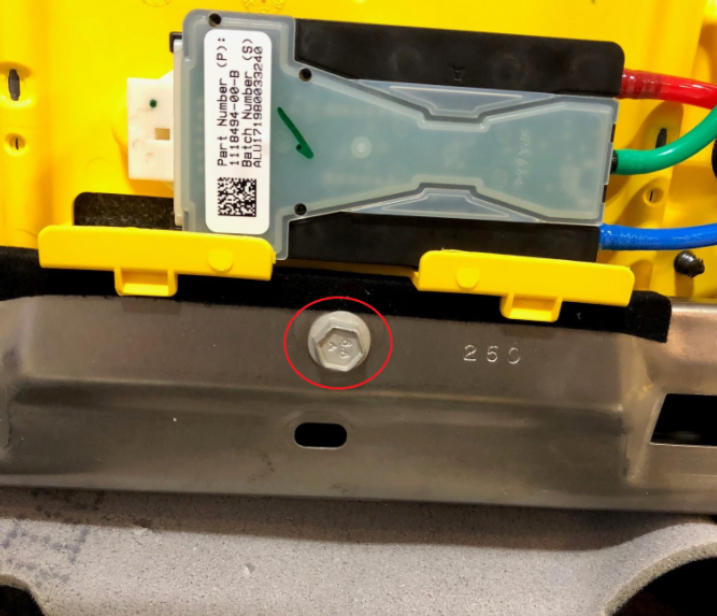

  6. Install the bolt that attaches the bottom of the lumbar support to the seat assembly.

    5 N.m (3.7 ft-lbs)

    NOTE: The bolt is located below the lumbar ECU.

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15404970Courtesy of TESLA, INC.

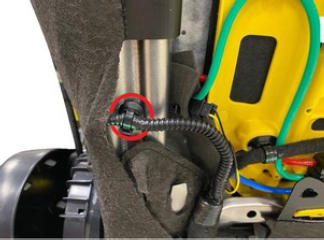

  7. Install the clip that attaches the driver seat side airbag harness to the driver seat seat frame.
    G15404971Courtesy of TESLA, INC.

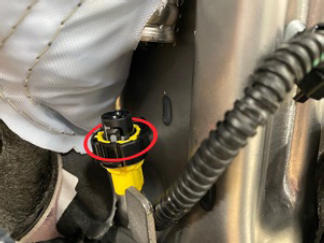

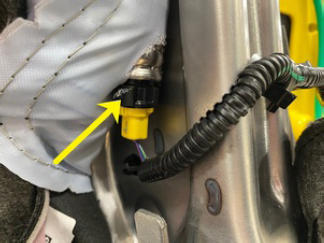

  8. Connect the driver seat side air bag electrical connector, and then secure the safety lock.
    G15404972Courtesy of TESLA, INC.
    G15404973Courtesy of TESLA, INC.

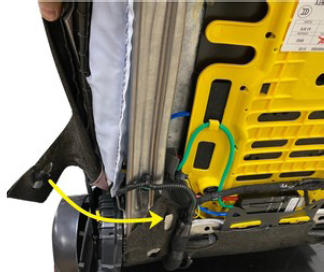

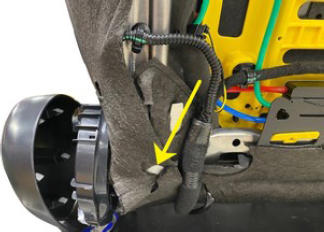

  9. Carefully secure the LH side of the driver seat seat cover and foam onto the seat frame.
    G15404974Courtesy of TESLA, INC.
    G15404975Courtesy of TESLA, INC.
    G15404976Courtesy of TESLA, INC.
  10. Secure the retainers (x6), and then secure the trim strap onto the driver seat seat back frame.
    G15404977Courtesy of TESLA, INC.

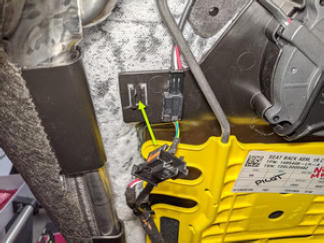

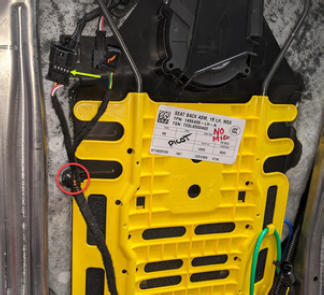

  11. Secure the female side of microphone connector and harness clips (x2) onto seat back suspension.
    G15404978Courtesy of TESLA, INC.
    G15404979Courtesy of TESLA, INC.

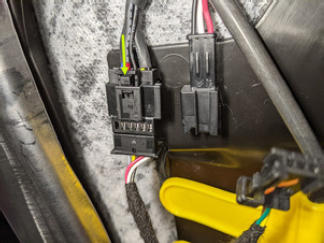

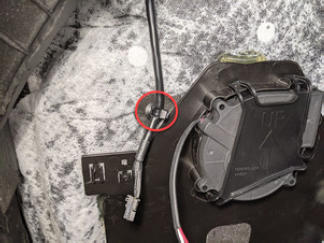

  12. Connect the driver seat microphone, and then secure harness clip onto the seat back foam.
    G15404980Courtesy of TESLA, INC.
    G15404981Courtesy of TESLA, INC.

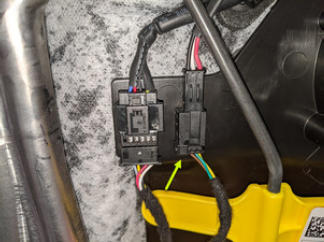

  13. Slide the fan controller electrical connector downward to install it onto the bracket, and then connect the electrical connector.
    G15404982Courtesy of TESLA, INC.

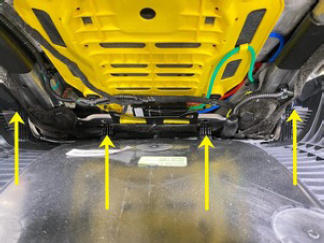

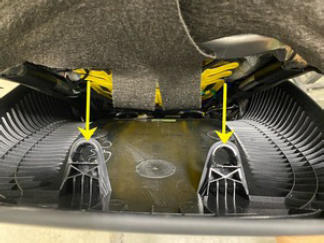

  14. With assistance, align and fully secure the clips that attach the driver seat back shell to the seat assembly.
    G15404983Courtesy of TESLA, INC.
    G15404984Courtesy of TESLA, INC.
    G15404985Courtesy of TESLA, INC.
  15. Install the driver headrest trim. See TRIM - HEADREST - DRIVER (REMOVE AND REPLACE) .
  16. Position the driver seat assembly onto the seat back.
    NOTE: Protect the seat from damage.

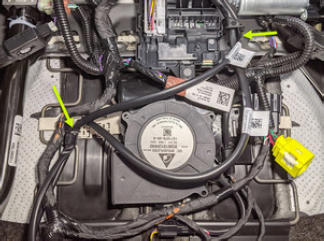

  17. Secure the clip and bracket that attach the FSC and FSB vent heat pad harnesses to the seat assembly.
    NOTE: One harness is for the seat cushion and the other is for the seat back. The upper bracket aids in routing while the lower clip secures them.
    G15404986Courtesy of TESLA, INC.

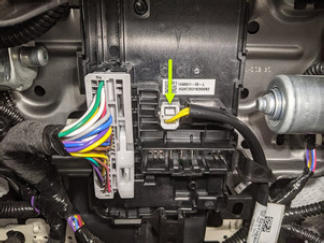

  18. Connect the FSB vent heat pad electrical connector from the seat controller.
    G15404987Courtesy of TESLA, INC.
  19. Secure the seat back elastic straps (x2) to the seat frame.
    G15404988Courtesy of TESLA, INC.
  20. Position the seat assembly upright.
  21. Install the driver seat into the vehicle. See SEAT ASSEMBLY - 1ST ROW - LH (REMOVE AND INSTALL) .
