Cover - Cushion - Driver Seat - Remove And Replace: Remove

  1. Remove the driver seat from the vehicle. See SEAT ASSEMBLY - 1ST ROW - LH (REMOVE AND INSTALL) .
  2. With assistance, place the driver seat on a protected surface so that the underside of the seat can be accessed.
  3. Remove the screw that attaches the driver seat outboard side shield to the seat assembly.

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 socket
    • 2 in extension
    • Ratchet/torque wrench
    G15404874Courtesy of TESLA, INC.

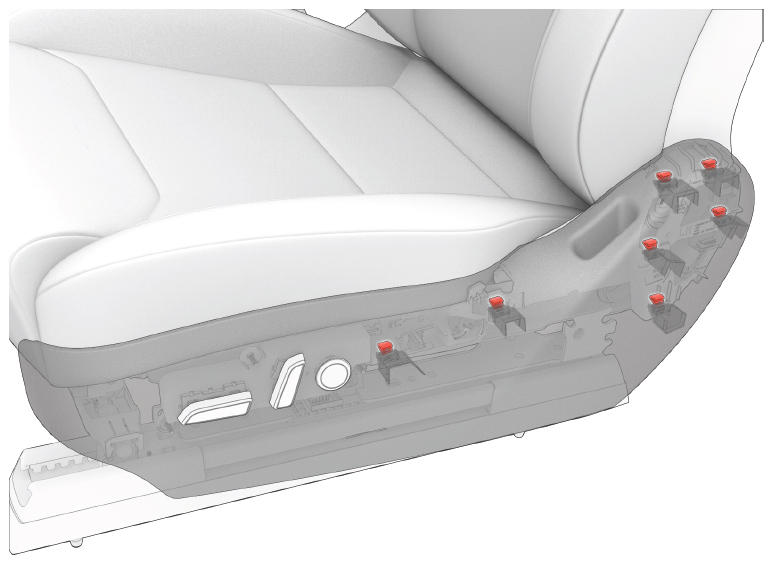

  4. Carefully release the clips (x7) that attach the driver seat outboard side shield to the seat assembly, but do not fully remove the side shield from the seat assembly.
    G13957049Courtesy of TESLA, INC.
  5. Disconnect the electrical harness from the seat switch.
    G15404875Courtesy of TESLA, INC.
  6. Remove the driver seat inboard side shield. See SIDE SHIELD - INBOARD - DRIVER SEAT (REMOVE AND REPLACE) .
  7. Release the seat back elastic straps (x2) from the driver seat frame.
    G15404876Courtesy of TESLA, INC.

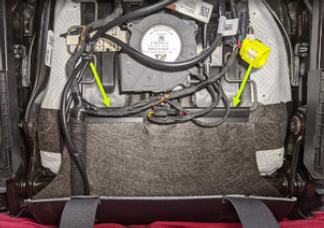

  8. Release the soft trim retainers (x2) from the driver seat frame.
    G15404877Courtesy of TESLA, INC.

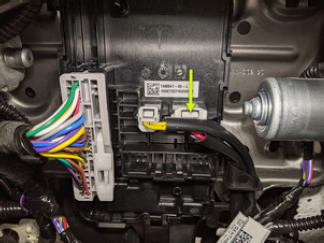

  9. Disconnect the FSC vent heat pad electrical connector from the driver seat controller.
    G15404878Courtesy of TESLA, INC.

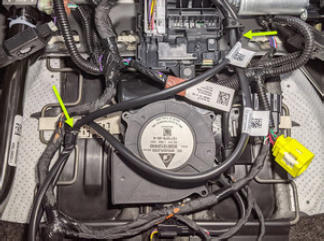

  10. Release the clip and bracket that attach the FSC and FSB vent heat pad harnesses to the driver seat assembly, and then remove the harnesses from the assembly.
    NOTE: One harness is for the seat cushion and the other is for the seat back. The upper bracket aids in routing while the lower clip secures them.
    G15404879Courtesy of TESLA, INC.

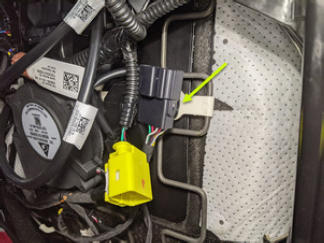

  11. Release the clip that attaches the driver seat harness to the seat frame bracket.
    G15404880Courtesy of TESLA, INC.

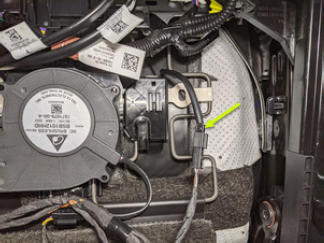

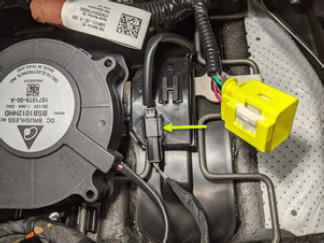

  12. Slide the OCS harness connector upward to release it from the SBR bracket, and then disconnect the electrical connector.
    G15404881Courtesy of TESLA, INC.
    G15404882Courtesy of TESLA, INC.

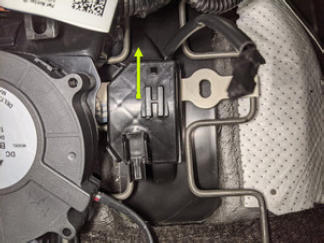

  13. Slide the SBR bracket upward to release it from the driver seat frame.
    G15404883Courtesy of TESLA, INC.

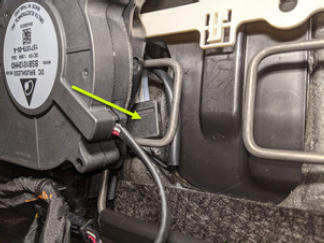

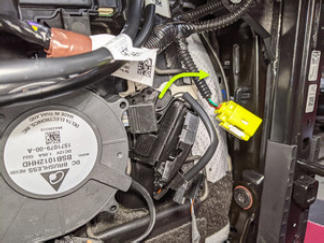

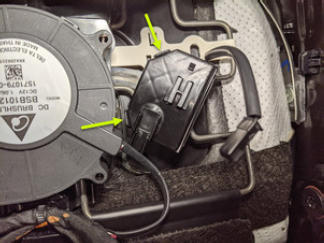

  14. Release the tabs (x2) to open the SBR bracket containing OCS harness, and then route the harness between the driver cushion and frame.
    NOTE: Routing the harness will avoid it getting snagged when the seat foam is removed from the seat frame.
    G15404884Courtesy of TESLA, INC.
    G15404885Courtesy of TESLA, INC.
    G15404886Courtesy of TESLA, INC.

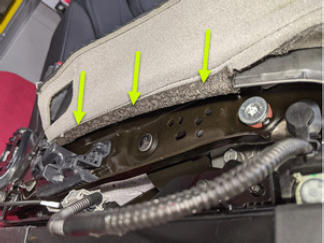

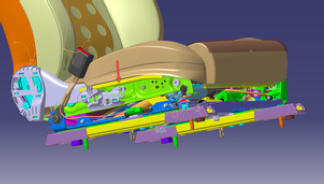

  15. Release the soft trim retainer from the inboard side of the driver seat frame.
    G15404887Courtesy of TESLA, INC.
    G15404888Courtesy of TESLA, INC.

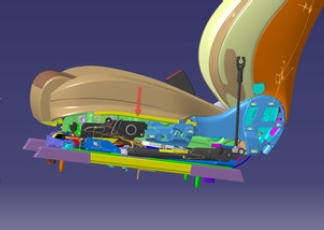

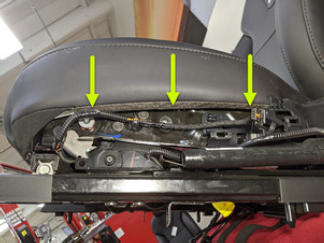

  16. Release the soft trim retainer from the outboard side of the driver seat frame.
    G15404889Courtesy of TESLA, INC.
    G15404890Courtesy of TESLA, INC.

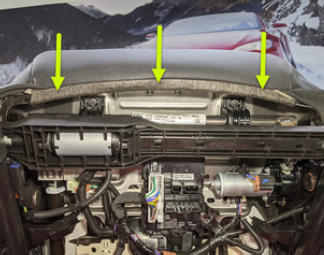

  17. Release the soft trim retainer from front end of the driver seat frame.
    G15404891Courtesy of TESLA, INC.
  18. Position the seat assembly upright.
  19. Remove the driver seat seat cushion from the seat frame.

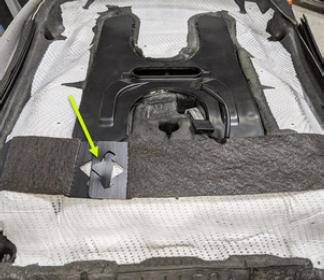

  20. Release the strap that attaches the driver seat cushion trim below the seat foam.
    G15404892Courtesy of TESLA, INC.

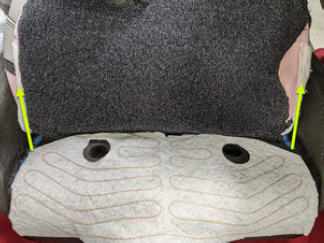

  21. Release the Velcro that attaches the driver seat cushion trim to the foam pad, and then fold the trim back until the first row of hog rings is exposed.
    G15404893Courtesy of TESLA, INC.

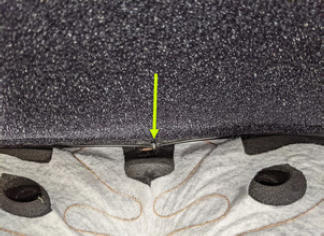

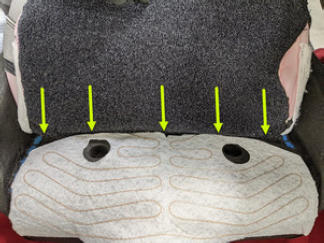

  22. Use diagonal cutters to cut and remove the front hog rings (x5) that attach the driver seat cushion trim cover to the foam pad.
    NOTE: Push down on the foam as necessary to allow additional access to the rings.
    WARNING: Verify any excess pieces have been removed from the foam.
    G15404894Courtesy of TESLA, INC.
    G15404895Courtesy of TESLA, INC.

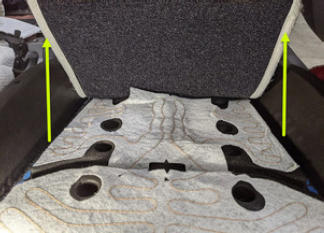

  23. Release the remaining Velcro that attaches the driver seat cushion trim to the foam pad.
    NOTE: Fold the trim back until access to OCS is clear.
    G15404896Courtesy of TESLA, INC.

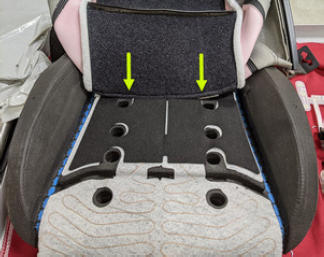

  24. Use diagonal cutters to cut and remove the center hog rings (x2) that attach the driver seat cushion trim to the foam pad.
    G15404897Courtesy of TESLA, INC.

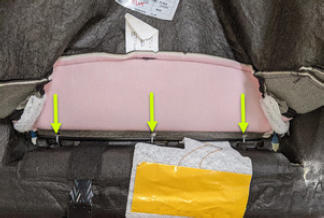

  25. Use diagonal cutters to cut and remove the rear hog rings (x3) that attach the driver seat cushion trim to the foam pad.
    G15404898Courtesy of TESLA, INC.
  26. Remove the driver seat cushion trim from the foam pad.
    G15404899Courtesy of TESLA, INC.
    G15404900Courtesy of TESLA, INC.
