Carrier - RH - Side Shield - Inboard - Front Seat - Remove And Replace: Remove

  1. Remove the driver seat inboard side shield. See SIDE SHIELD - INBOARD - DRIVER SEAT (REMOVE AND REPLACE) .
  2. Release the clips (x2) and tabs (x2) that attach the front seat side shield RH carrier to the front seat.
    NOTE: Release leading edge of trim, and then slide the trim away from the seat frame.

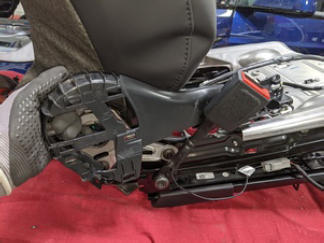

    G15404802Courtesy of TESLA, INC.

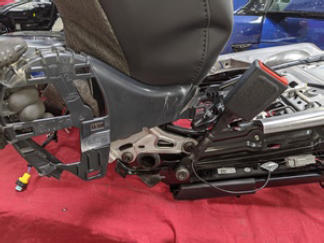

    G15404803Courtesy of TESLA, INC.

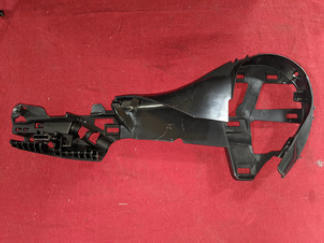

    G15404804Courtesy of TESLA, INC.
