Carrier - RH - Side Shield - Inboard - Front Seat - Remove And Replace: Install

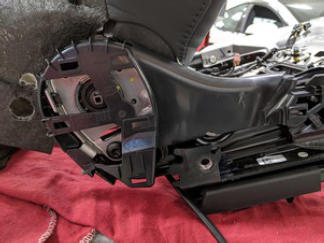

  1. Position the front seat side shield RH carrier onto the LH front seat, and then slide the carrier forward onto the frame to align the clips (x2) and tabs (x3).
    G15404805Courtesy of TESLA, INC.
  2. Install the driver seat inboard side shield. See SIDE SHIELD - INBOARD - DRIVER SEAT (REMOVE AND REPLACE) .
