Carrier - LH - Side Shield - Outboard - Front Seat - Remove And Replace: Install

  1. Position the front seat side shield LH carrier onto the seat assembly, and then secure the clips (x2) and tabs (x2) that attach the carrier to the seat assembly.

    Tip: Rotate the trim to secure the rear tabs into frame, and then secure the front clips.

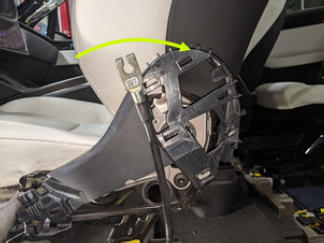

    G15404797Courtesy of TESLA, INC.

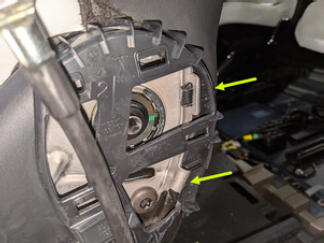

    G15404798Courtesy of TESLA, INC.

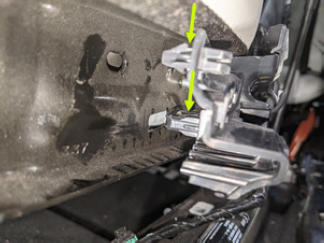

    G15404799Courtesy of TESLA, INC.

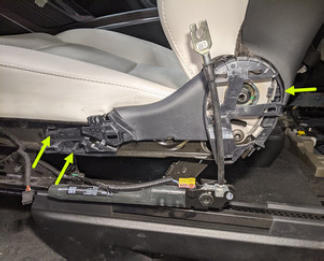

    G15404800Courtesy of TESLA, INC.
  2. Install the driver seat outboard side shield assembly. See SIDE SHIELD - OUTBOARD - DRIVER SEAT (REMOVE AND REPLACE) .
