Heater Pad - Cushion - 3rd Row - LH - Remove And Replace: Install

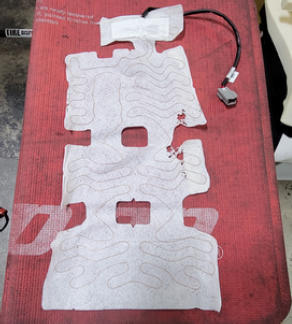

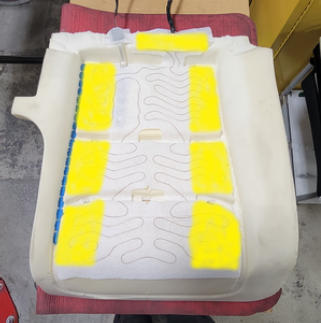

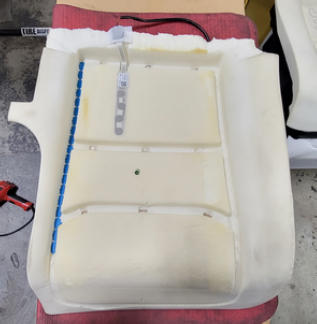

  1. Install the new 3rd row seat cushion heat pad on the cushion foam.
    CAUTION: Heat pad cannot be reused. If the material is heated more than once, the coils will be damaged.
    NOTE: Ensure the heater pad is fitted into the cushion foam channels.
    G15405382Courtesy of TESLA, INC.
    G15405383Courtesy of TESLA, INC.
    G15405384Courtesy of TESLA, INC.

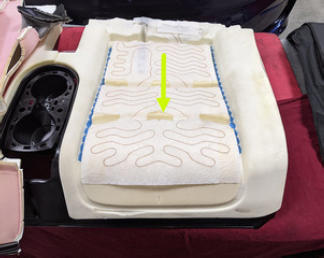

  2. Install the 3rd row LH cushion foam on the 3rd row cushion substrate.
    G15405385Courtesy of TESLA, INC.

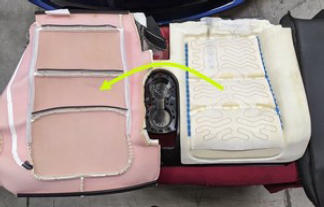

  3. Align the 3rd row cushion cover on the LH cushion foam.
    G15405386Courtesy of TESLA, INC.

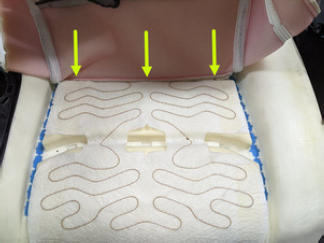

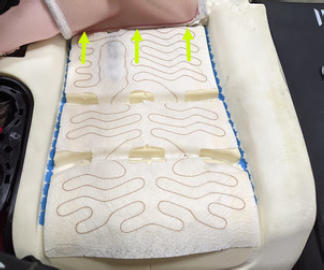

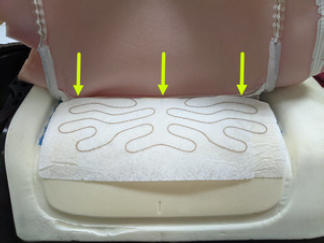

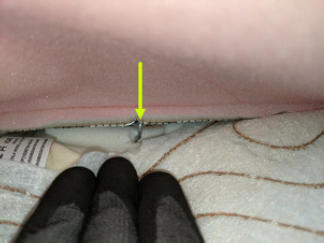

  4. Starting from the rear of the LH seat cushion and working towards the leading edge, install the hog rings (x9) and Velcro strips (x2) that attach the 3rd row cushion cover to the seat cushion.

    Tip: Use of the following tool(s) is recommended:

    • Hog ring pliers - 1501599-00-A
    G15405387Courtesy of TESLA, INC.
    G15405388Courtesy of TESLA, INC.
    G15405389Courtesy of TESLA, INC.
    G15405390Courtesy of TESLA, INC.

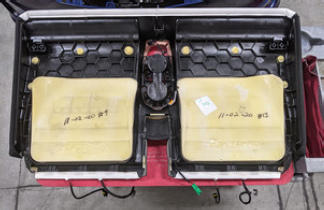

  5. Flip the 3rd row cushion assembly to access the bottom side.
    G15405391Courtesy of TESLA, INC.

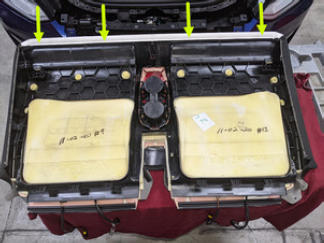

  6. Install the J-hooks (x2) that attach the 3rd row cushion cover to the rear end of the cushion substrate.
    G15405392Courtesy of TESLA, INC.

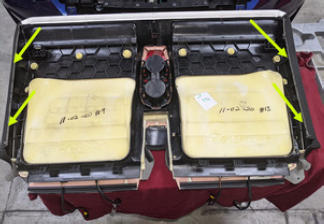

  7. Install the J-hooks (x2) that attach the 3rd row cushion cover to both sides of the 3rd row cushion substrate.
    G15405393Courtesy of TESLA, INC.

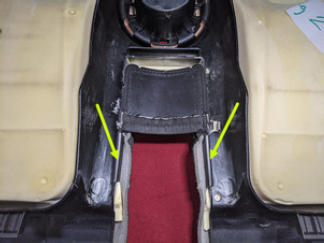

  8. Install the J-hooks (x2) that attach the 3rd row cushion cover to the cup holder.
    G15405394Courtesy of TESLA, INC.
  9. Feed the 3rd row cushion connectors (x4) through the cushion cover.
    G15405395Courtesy of TESLA, INC.

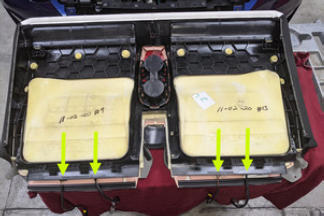

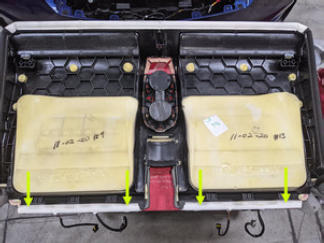

  10. Install the J-hooks (x2) that attach the 3rd row cushion cover to the front end of the 3rd row cushion substrate.
    G15405396Courtesy of TESLA, INC.

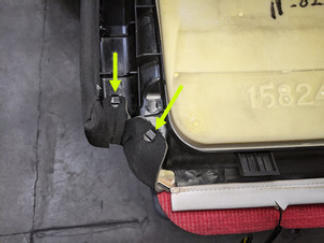

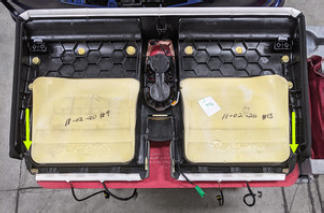

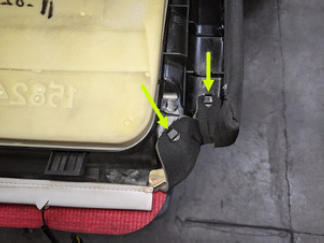

  11. Install the tabs (x4) that attach the 3rd row cushion cover to the rear corners of cushion substrate.
    G15405397Courtesy of TESLA, INC.
    G15405398Courtesy of TESLA, INC.
    G15405399Courtesy of TESLA, INC.

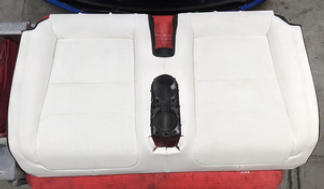

  12. Flip the 3rd row cushion assembly to access the topside, and then inspect for any fitment issues.
    NOTE: If issues are present, correct the trim fitment, and then proceed with the installation.
    G15405400Courtesy of TESLA, INC.
  13. Install the 3rd row seat cushion. See CUSHION - SEAT - 3RD ROW (REMOVE AND REPLACE) .
  14. Install the LH and RH 3rd row tray harnesses. See TRAY HARNESS - 3RD ROW - LH (REMOVE AND REPLACE) .
  15. Install the rear trunk carpet. See Carpet - Rear Trunk (7 Seat) (Remove and Replace) .
  16. Install the rear trunk floor NVH insulator. See NVH Insulator - Floor - Rear Trunk (Remove and Replace) .
  17. Install the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace) .
  18. Connect LV power. See LV Power (Disconnect and Connect) .
  19. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  20. Close the hood.
  21. Close the liftgate.
  22. Move the LH and RH monopost seats to original position.
  23. Move the LH and RH front seats to original position.
  24. Calibrate the rear doors.
    NOTE: If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate  to calibrate the rear doors
  25. Raise the LH and RH front windows.
  26. Close LH and RH front doors.
