Cover - Recliner - 3rd Row - LH - Remove And Replace: Remove

  1. Remove the 3rd row seat assembly from the vehicle. See SEAT ASSEMBLY - 3RD ROW (REMOVE AND REPLACE) .

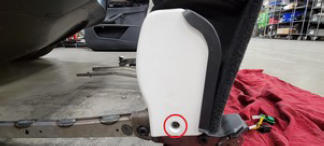

  2. Remove the screw that attaches the LH 3rd row recliner cover to the seat assembly.

    4 N.m (2.9 ft-lbs)

    NOTE: Use of the following tool(s) is recommended:
    • Torx T25 socket
    G15405352Courtesy of TESLA, INC.

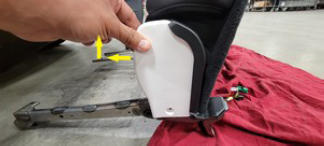

  3. Pull the LH 3rd row recliner cover forward and upward to remove it from the seat assembly.
    G15405353Courtesy of TESLA, INC.

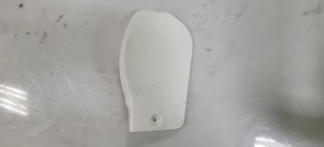

    G15405354Courtesy of TESLA, INC.
