Cover - Recliner - 3rd Row - Center - Remove And Replace: Remove

  1. Open LH rear door and liftgate.
  2. Fold the 2nd row seats into the down position.
  3. Remove the 3rd row seat cushion. See CUSHION - SEAT - 3RD ROW (REMOVE AND REPLACE) .
  4. Release the clips (x2) that attach the center 3rd row recliner cover to the seat back assembly, and then pull the cover outward from the top to remove it from the assembly.

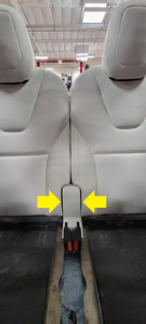

    G15405337Courtesy of TESLA, INC.

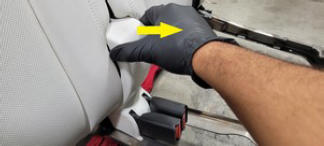

    G15405338Courtesy of TESLA, INC.

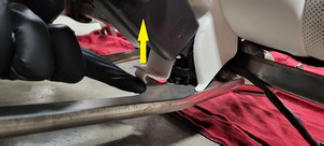

    G15405339Courtesy of TESLA, INC.

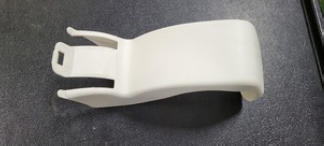

    G15405340Courtesy of TESLA, INC.
