Cover - Recliner - 3rd Row - Center - Remove And Replace: Install

  1. Position the center 3rd row recliner cover into the seat back assembly, feed the bottom of the cover underneath the LH 3rd row seat belt buckle, and then push downward and inward to secure the clips (x2).

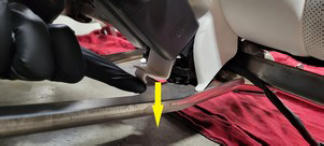

    G15405342Courtesy of TESLA, INC.

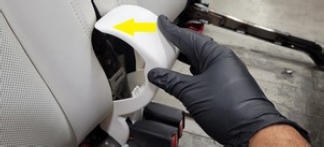

    G15405343Courtesy of TESLA, INC.

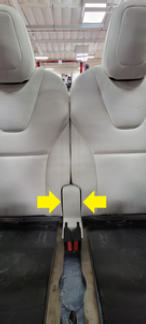

    G15405344Courtesy of TESLA, INC.
  2. Install the 3rd row seat cushion. See CUSHION - SEAT - 3RD ROW (REMOVE AND REPLACE) .
  3. Fold the 2nd row seats to the upright position.
  4. Close the LH rear door and liftgate.
