Cover - Cushion - 3rd Row - Remove And Replace: Remove

  1. Open the LH and RH front doors.
  2. Lower the LH and RH front windows.
  3. Open the LH and RH falcon wing doors.
  4. Move the LH and RH front seats forward.
  5. Move the LH and RH monopost seats forward.
  6. On the touchscreen, touch Controls  > Frunk Open  .
  7. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  8. Open the liftgate.
  9. Remove the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace) .
  10. Remove the rear trunk floor NVH insulator. See NVH Insulator - Floor - Rear Trunk (Remove and Replace) .
  11. Remove the rear trunk carpet. See Carpet - Rear Trunk (7 Seat) (Remove and Replace) .
  12. On the touchscreen, touch Controls  > Safety & Security  > Power Off  .
  13. Disconnect LV power. See LV Power (Disconnect and Connect) .
  14. Remove the LH and RH 3rd row tray harnesses. See TRAY HARNESS - 3RD ROW - LH (REMOVE AND REPLACE) .
  15. Remove the 3rd row seat cushion. See CUSHION - SEAT - 3RD ROW (REMOVE AND REPLACE) .
  16. Flip the 3rd row cushion over to access the bottom side of the cushion.
    NOTE: Place the cushion on a protected surface.

    Tip: Use of the following tool(s) is recommended:

    • Fender cover - 115212-00-A

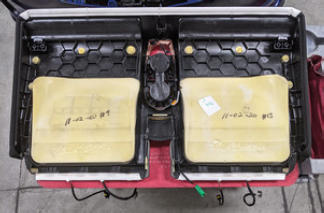

    G15405297Courtesy of TESLA, INC.

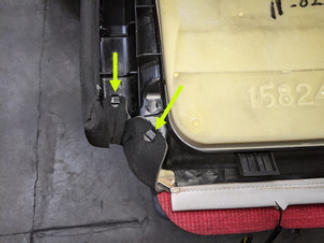

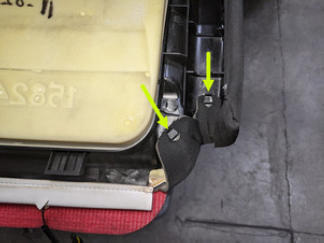

  17. Release the tabs (x4) that attach the 3rd row cushion cover to the rear corners of cushion substrate.
    G15405298Courtesy of TESLA, INC.
    G15405299Courtesy of TESLA, INC.
    G15405300Courtesy of TESLA, INC.

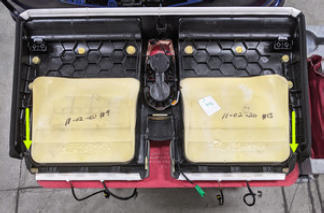

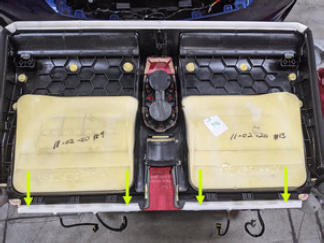

  18. Release the J-hooks (x2) that attach the 3rd row cushion cover to the rear end of the cushion substrate.

    Tip: Use of the following tool(s) is recommended:

    • Pick Miniature Soft Grip, 90 degree tip, 6 in
    G15405301Courtesy of TESLA, INC.

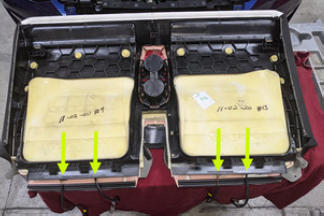

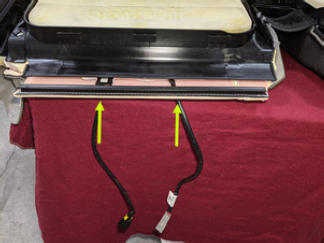

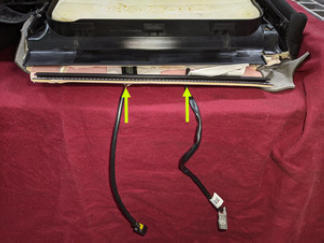

  19. Feed the 3rd row cushion connectors (x4) through the rear end of the cushion cover.
    G15405302Courtesy of TESLA, INC.
    G15405303Courtesy of TESLA, INC.
    G15405304Courtesy of TESLA, INC.

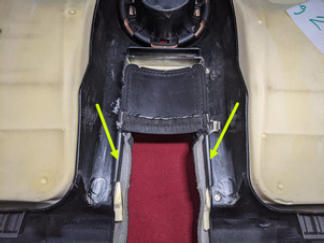

  20. Release the J-hooks (x2) that attach the 3rd row cushion cover to the cup holder.

    Tip: Use of the following tool(s) is recommended:

    • Pick Miniature Soft Grip, 90 degree tip, 6 in
    G15405305Courtesy of TESLA, INC.

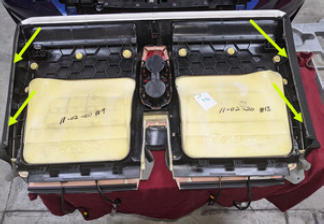

  21. Release the J-hooks (x2) that attach the 3rd row cushion cover to both sides of the 3rd row cushion substrate.

    Tip: Use of the following tool(s) is recommended:

    • Pick Miniature Soft Grip, 90 degree tip, 6 in
    G15405306Courtesy of TESLA, INC.

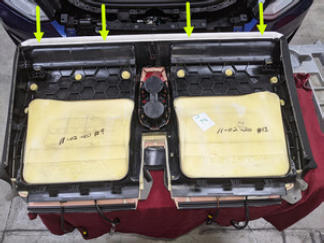

  22. Release the J-hooks (x2) that attach the 3rd row cushion cover to the front end of the 3rd row cushion substrate.

    Tip: Use of the following tool(s) is recommended:

    • Pick Miniature Soft Grip, 90 degree tip, 6 in
    G15405307Courtesy of TESLA, INC.
  23. Flip the 3rd row cushion assembly to access the top side.
    G15405308Courtesy of TESLA, INC.

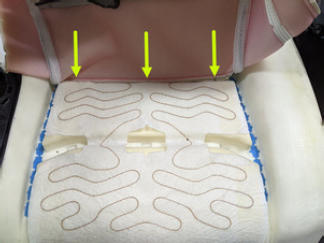

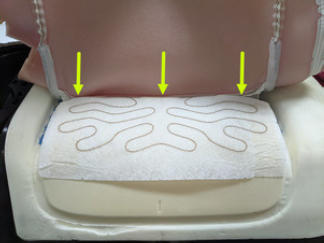

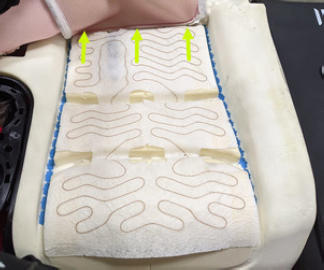

  24. Starting from the leading edge and working towards the rear of the LH and RH seat cushions, remove the hog rings (x18) and Velcro strips (x4) that attach the 3rd row cushion cover to the seat cushions.

    Tip: Use of the following tool(s) is recommended:

    • Diagonal pliers
    G15405309Courtesy of TESLA, INC.
    G15405310Courtesy of TESLA, INC.
    G15405311Courtesy of TESLA, INC.

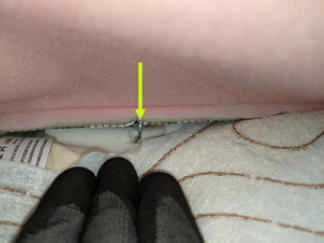

    G15405312Courtesy of TESLA, INC.

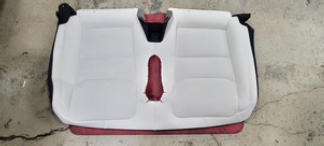

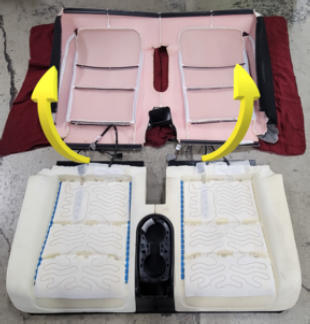

  25. Remove the 3rd row cushion cover from the LH and RH cushion foams.
    G15405313Courtesy of TESLA, INC.
    G15405314Courtesy of TESLA, INC.
