Closeout - Cup Holder - Seat - 3rd Row - Remove And Replace: Remove

Open all the doors and lower the LH and RH front windows.
Move the driver and front passenger seats fully forward.
Move LH and RH 2nd row seats fully forward.

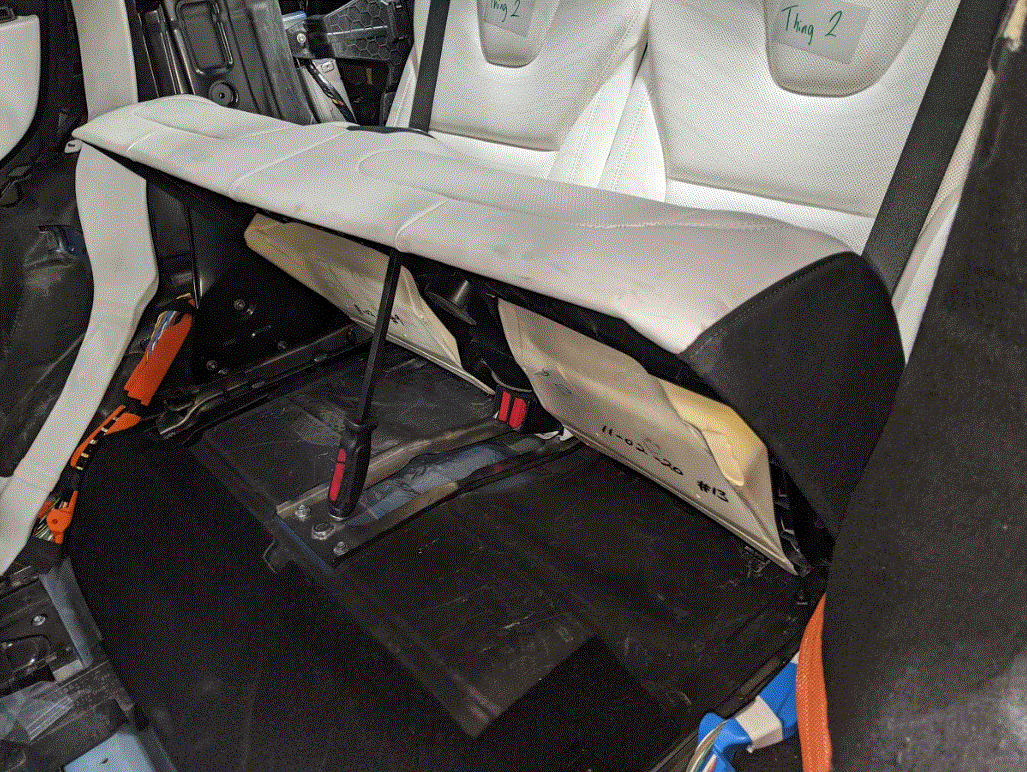

Lift the 3rd row seat cushion from the seat frame.
CAUTION: Be careful not to damage the electrical harness that is routed onto the lower side of the seat cushion.

NOTE: Use a telescoping hood prop (1080562-00-A) or similar to hold up the seat cushion.

Courtesy of TESLA INC.

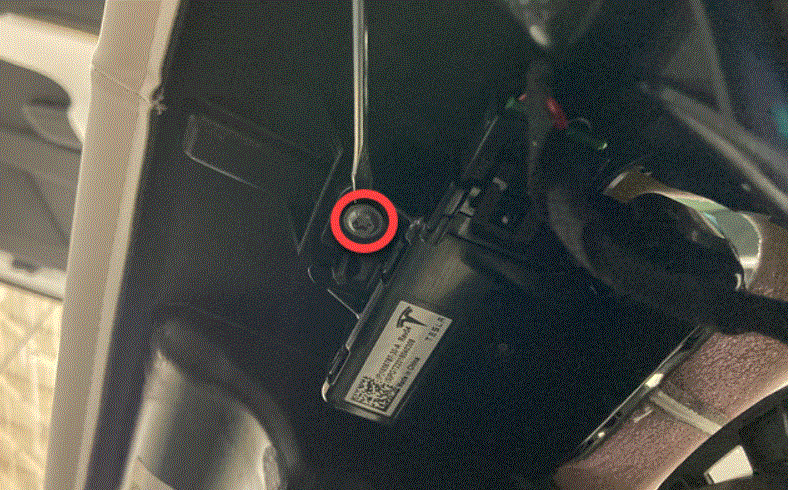

Remove the screw that attaches the USB hub to the seat cushion.
1.8 N.m (1.3 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T20 bit
Courtesy of TESLA INC.

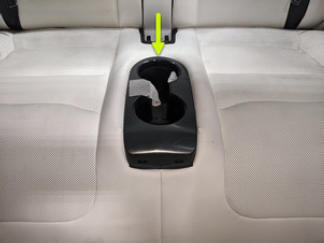

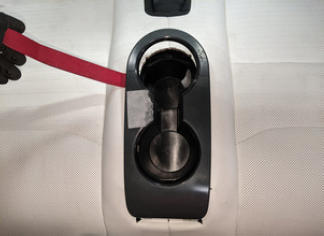

Release the clips (x8) that attach the 3rd row seat cup holder closeout to the seat cushion.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

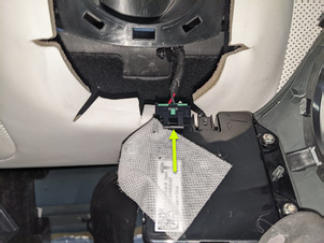

Disconnect the USB hub electrical connector.

Courtesy of TESLA, INC.

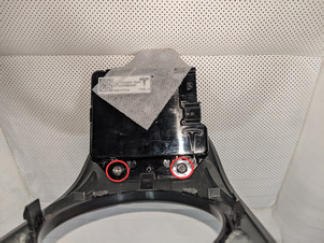

Remove the screws (x3) that attach the 3rd row USB hub to the 3rd row seat cup holder closeout, and then remove the hub from the closeout.
1.8 N.m (1.3 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T20 socket
Courtesy of TESLA, INC.
