Closeout - Cup Holder - Seat - 3rd Row - Remove And Replace: Install

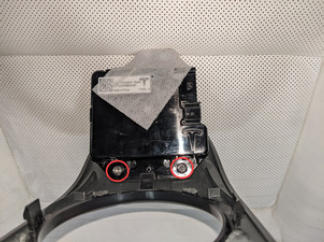

Position the 3rd row USB hub onto the 3rd row seat cup holder closeout, and then install the screws (x3) that attach the hub to the closeout.
1.8 N.m (1.3 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T20 socket
Courtesy of TESLA, INC.

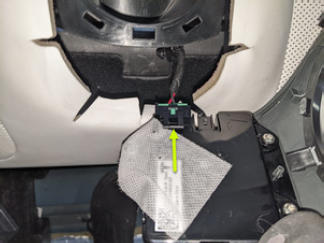

Connect the 3rd row USB hub electrical connector.

Courtesy of TESLA, INC.

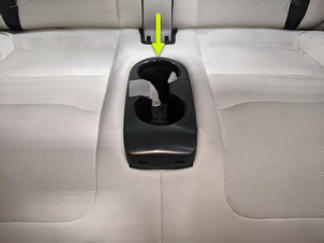

Position the 3rd row seat cup holder closeout into the seat assembly, and then secure the clips (x8) that attach the closeout to the seat assembly.

Courtesy of TESLA, INC.
Install the screw that attaches the USB hub to the seat cushion.
1.8 N.m (1.3 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T20 bit
Courtesy of TESLA INC.
Secure the tabs (x2) that attach the 3rd row seat cushion to the vehicle.
NOTE: Feed the seat cushion electrical harness below the seat back rest.

Courtesy of TESLA INC.
Move the LH and RH 2nd row seats back to the original position.
Move the driver and front passenger seats back to their original position.
Close LH and RH front windows and close all doors.
