Tray Harness - 3rd Row - LH - Remove And Replace: Remove
- Open the LH falcon wing door.
- Open the liftgate.
- Fold the 2nd row 60 seat downwards.
- Remove the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace) .
- Remove the rear trunk carpet. See Carpet - Rear Trunk (5 Seat) (Remove and Replace) .

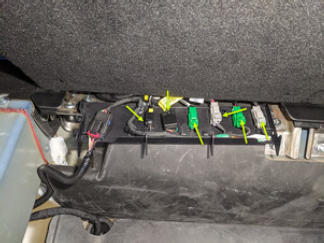

- Disconnect the LH 3rd row tray harness connectors (x7).
Tip: Use of the following tool(s) is recommended:
- Pocket screwdriver

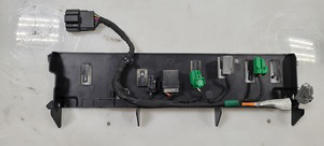

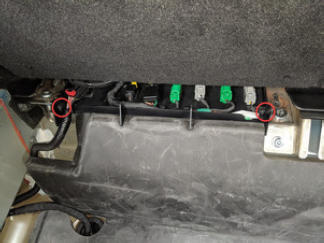

- Release the push clips (x2) that attach the LH 3rd row tray harness to the seat frame, and then remove the harness from the vehicle.
Tip: Use of the following tool(s) is recommended:
- Clip prytool
