Tray Harness - 3rd Row - LH - Remove And Replace: Install

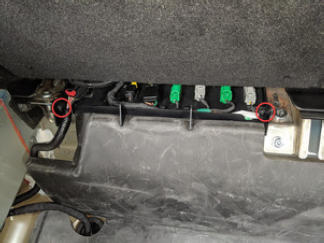

  1. Position the LH 3rd row tray harness on the vehicle, and then install the push clips (x2) that attach the harness to the seat frame.
    G15404788Courtesy of TESLA, INC.

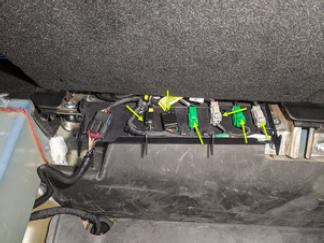

  2. Connect the LH 3rd row tray harness connectors (x7).
    G15404789Courtesy of TESLA, INC.
  3. Install the rear trunk carpet. See Carpet - Rear Trunk (5 Seat) (Remove and Replace) .
  4. Install the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace) .
  5. Unfold the LH 3rd row seat into original position.
  6. Close the liftgate.
  7. Unfold the 2nd row 60 seat into original position.
  8. Close the LH falcon wing door.
