Seat Back Carpet - 3rd Row - LH - Remove And Replace: Install

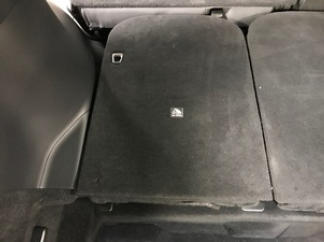

  1. Position the LH 3rd row seat back carpet on the vehicle, and then install the clips (x9) that attach the carpet to the seat.
    G15404779Courtesy of TESLA, INC.

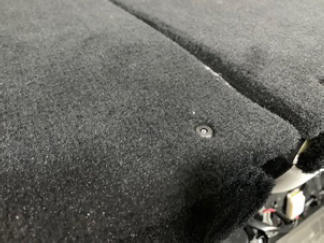

  2. Install the rivets (x2) that attach the LH 3rd row seat back carpet to the seat.

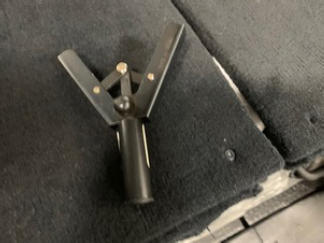

    Tip: Use of the following tool(s) is recommended:

    • Plastic rivet setter kit
    G15404780Courtesy of TESLA, INC.
    G15404781Courtesy of TESLA, INC.
    G15404782Courtesy of TESLA, INC.
    G15404783Courtesy of TESLA, INC.
  3. Install the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace) .
  4. Unfold the LH 3rd row seat into original position.
  5. Close the liftgate.
  6. Unfold the 2nd row 60 seat into original position.
  7. Close the LH falcon wing door.
